Selecting the wrong industrial heating methodology routinely leads to uneven drying and dangerous thermal runaway. These missteps also waste valuable capital expenditure. For facilities transitioning from traditional convection to dielectric heating, frequency selection remains the absolute most critical variable. The 2450 MHz ISM (Industrial, Scientific, and Medical) band offers distinct energy transfer characteristics compared to its 915 MHz counterpart. You must understand these physical differences to prevent major process bottlenecks down the line.
This guide comprehensively breaks down the physical heating mechanics of 2450 MHz systems. We establish a clear, actionable evaluation framework for process engineers and facility managers. You will learn exactly how to determine if a 2450 MHz microwave dryer aligns with your specific material properties, production throughput, and facility constraints. By matching the right frequency to your product geometry, you can optimize product quality and scale your operations confidently.
Penetration Depth Constraints: The 2450 MHz frequency has a shorter wavelength (~12.2 cm), making it highly effective for materials with a thickness of under 2 inches (5 cm), where rapid surface and shallow-volume heating is required.
Ideal Applications: Best suited for continuous thin-bed drying, low-density materials, and precision sterilization.
Equipment Format: Commonly implemented in a continuous tunnel microwave dryer configuration to maintain high throughput and uniform energy distribution.
The 2450 MHz frequency operates at a wavelength of approximately 12.2 centimeters. This specific wavelength dictates how electromagnetic energy interacts with your product. Dielectric heating relies heavily on dipolar rotation. Polar molecules, primarily water, attempt to align themselves with the rapidly alternating electric field. At 2450 MHz, this field reverses 2.45 billion times per second. This intense molecular movement generates massive internal volumetric friction. Heat develops instantaneously within the material matrix rather than relying on slow thermal conduction from the outside in.
You must compare penetration depth objectively when evaluating 2450 MHz against 915 MHz. Penetration depth refers to the distance an electromagnetic wave travels into a material before its power drops to roughly 37% of its surface value. Because 2450 MHz has a shorter wavelength, it yields a notably shallower penetration depth. However, it delivers a much higher power density in the outer layers of your product. The 915 MHz frequency penetrates much deeper, making it the better choice for bulky, dense materials like whole timber or thick meat blocks. If you process thin layers, 2450 MHz forces rapid evaporation exactly where you need it most.
Microwave drying possesses a natural, self-limiting characteristic known as moisture leveling. As a product loses moisture, its dielectric loss factor decreases. Wet spots absorb electromagnetic energy aggressively. Drier areas absorb significantly less energy. This physical phenomenon naturally prevents over-drying across the product bed. Assuming operators calibrate the feed rates correctly, moisture leveling guarantees a highly uniform final moisture profile.
Despite these benefits, you must acknowledge the risk of thermal runaway. If material geometry is highly irregular, electromagnetic fields can concentrate in sharp corners or thin edges. These concentrations create aggressive "hot spots." Irregular moisture distribution entering the system can also exacerbate this issue. Engineers must design proper microwave applicators and ensure a consistent upstream feed to mitigate runaway risks.
Successful dielectric heating integration requires a strict compatibility assessment. Material geometry dictates whether 2450 MHz will succeed or fail. Thin extrusions, granular powders, and flat continuous webs demonstrate exceptional compatibility. Products thicker than two inches often experience surface scorching before the center reaches target temperatures at this frequency.
Product Geometry | Compatibility Rating | Technical Rationale |
|---|---|---|
Thin Webs & Paper | Excellent | Shallow penetration perfectly matches web thickness. Extreme power density drives rapid flash-off. |
Granular Powders & Spices | Excellent | Thin-bed conveying allows uniform exposure. Moisture leveling prevents localized burning. |
Sliced Vegetables & Mushrooms | High | Maximum thickness rarely exceeds 2 inches. Surface moisture evaporates instantly during transit. |
Thick Blocks & Whole Logs | Poor | Energy absorbs entirely at the surface. Centers remain cold while exteriors char rapidly. |

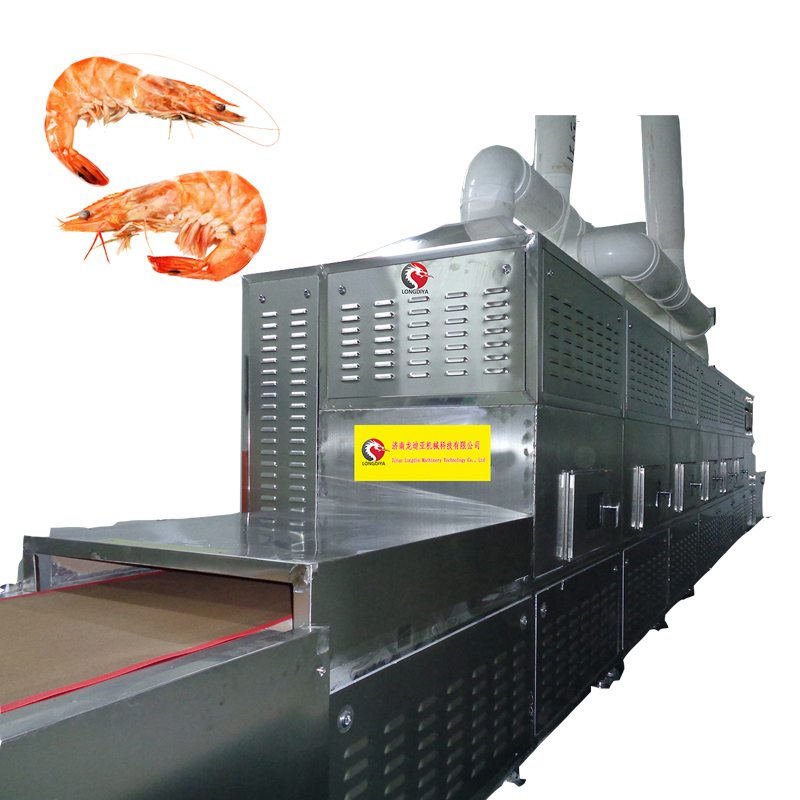

Continuous processing represents the gold standard for industrial implementations. A continuous tunnel microwave dryer provides vastly superior heating uniformity compared to static batch ovens. As products travel on a PTFE or fiberglass belt through the tunnel, they pass through multiple electromagnetic modes. This dynamic movement naturally cancels out standing wave anomalies. Tunnel systems integrate seamlessly into existing conveyor lines. You gain precise control over exposure times simply by adjusting the belt speed via a variable frequency drive.
Throughput scalability is highly straightforward with 2450 MHz tunnels. Engineers scale capacity by adding modular generator sections along the conveyor path. Unlike 915 MHz systems that often use one massive 75 kW generator, 2450 MHz systems utilize multiple smaller magnetrons. These typically range from 3 kW to 10 kW increments per magnetron. If production demands increase, you can physically lengthen the tunnel and add more modular heating zones.
You must also strategize exactly when to apply microwave energy. Using microwaves for the entire moisture-removal process rarely yields the highest return on investment. Conventional hot air efficiently removes surface water during the initial constant-rate drying phase. Microwaves excel during the "falling rate" period. When moisture retreats deep inside the product capillary structure, hot air struggles to remove it. Applying 2450 MHz during this finish-drying phase forces internal moisture to the surface rapidly. This hybrid approach slashes total processing time and protects product quality.
The precise, volumetric heating mechanics of 2450 MHz do much more than remove moisture. They act effectively as a highly lethal microwave sterilizer. Food, agricultural, and pharmaceutical industries leverage this frequency to destroy pathogens. Traditional thermal sterilization relies on slow heat transfer. This prolonged exposure degrades flavor, color, and nutritional value. Microwaves generate internal heat instantly.
Volumetric heating allows products to reach critical thermal kill steps in seconds rather than minutes. Pathogens such as Salmonella, E. coli, and Listeria contain water. They absorb the microwave energy directly. The rapid temperature spike fractures their cellular membranes. Because the total thermal degradation time remains extremely brief, the product's exterior nutritional profile stays completely intact. Spices, nuts, and botanical extracts retain their essential oils and vibrant colors.
However, you face strict regulatory and quality constraints when implementing microwave sterilization. You cannot simply assume uniform lethality. Validation requires rigorous mapping of the thermal profile. Temperature uniformity must be empirically proven to satisfy FDA or USDA compliance standards. Engineers often use specialized fiber-optic fluoroptic sensors to monitor internal temperatures dynamically. These non-metallic probes do not interfere with the electromagnetic field. They provide the critical data necessary to validate the microbial kill step.
Integrating high-power RF equipment demands serious facility preparation. Assess your electrical utility infrastructure early. A 2450 MHz industrial system relies on dozens of smaller magnetrons working simultaneously. This distributed architecture requires specific power distribution panels. You will also need substantial cooling infrastructure. Industrial magnetrons generate excess heat during the RF conversion process. Depending on the scale, you must install heavy-duty chilled water loops or high-velocity forced air systems to prevent catastrophic magnetron failure.
Safety and RF leakage compliance represent non-negotiable implementation realities. Industrial microwaves operate under strict OSHA and international emission standards (typically capped at 5 mW/cm² at a distance of 2 inches). Equipment manufacturers install active choke designs at the tunnel entrance and exit. These suppression tunnels use corrugated metal structures and absorptive water loads to block stray waves. Safety interlocks automatically cut power if an operator opens an access door. You must schedule regular leakage audits to ensure these safety mechanisms remain functional over years of harsh operation.
When you evaluate the footprint and layout, modular tunnels offer massive spatial advantages. Compare a microwave tunnel against traditional multi-pass convection ovens. Convection systems require enormous drying chambers to achieve sufficient residence times. Because dielectric heating is exponentially faster, the physical footprint shrinks drastically. Facilities routinely realize a 30% to 50% footprint reduction. This space savings allows you to install secondary packaging lines or expand adjacent production processes.
Selecting the right OEM requires looking beyond the initial brochure. You must evaluate the long-term operational setup. At 2450 MHz, magnetrons are essentially consumable components. A standard industrial magnetron is typically rated for 6,000 to 8,000 hours of continuous operation. You need to assess the physical ease of replacement. Does the equipment design allow a maintenance technician to swap a magnetron in twenty minutes, or does it require a half-day shutdown? Evaluate the protective circuitry as well. The system must include circulators to divert reflected power away from the magnetron, thereby extending its functional lifespan.
We strongly advise against purchasing any equipment without conducting rigorous feasibility testing. Theoretical math cannot replace empirical data. A credible OEM must provide pilot-scale lab testing. This validates the specific dielectric properties of your material at 2450 MHz. Products behave uniquely under RF fields depending on their salt content, density, and specific heat capacity. Pilot testing prevents catastrophic scale-up failures.
When you prepare to request a formal proposal from a vendor, use this structured technical checklist to gather your internal data first:
Throughput Targets: Define your required processing capacity in kilograms or pounds per hour.
Moisture Profiles: Specify the exact starting moisture content and the strict ending target moisture content.
Physical Dimensions: Provide precise measurements of the product geometry as it enters the dryer.
Bulk Density: Calculate the bed depth and weight of the material as it sits on the conveyor belt.
Utility Availability: Note your facility's available voltage, amperage, and cooling water capacity.
The 2450 MHz frequency delivers intense, shallow penetration, making it the premier choice for products under two inches thick.
Continuous tunnel architectures provide the most consistent moisture leveling and highest throughput scalability for industrial production.
Beyond moisture removal, the rapid volumetric heating mechanics offer unparalleled pathogen lethality while preserving product organoleptics.
Successful facility integration demands robust cooling infrastructure and strict adherence to RF leakage safety protocols.
Do not rely on guesswork when transitioning to dielectric heating. The definitive next step is to initiate lab-scale dielectric testing with a reputable equipment manufacturer. Send a representative sample of your product for a pilot run. This empirical data will secure your investment and ensure your full-scale system operates flawlessly from day one.
A: The primary difference is the wavelength and penetration depth. The 2450 MHz frequency has a 12.2 cm wavelength, providing shallow penetration and high surface power density. It is ideal for thin or low-density products. The 915 MHz frequency has a 32.8 cm wavelength, penetrating much deeper. It is utilized for bulky, dense materials like massive timber or thick frozen meat blocks.
A: It can, but hybrid systems often perform better. Microwaves excel at extracting internal moisture during the falling rate phase. Convection ovens are highly efficient at stripping surface moisture initially. Pairing traditional hot air with microwave energy maximizes throughput, reduces energy bottlenecks, and protects the exterior texture of the final product.
A: Industrial 2450 MHz magnetrons generally last between 6,000 and 8,000 hours under normal operating conditions. Premature failure occurs frequently if the system lacks proper cooling or if high reflected power (VSWR) bounces back into the generator. Using protective circulators and maintaining consistent product feed rates extends their lifespan significantly.
A: Yes. Because microwaves generate heat volumetrically inside the material, the required lethal temperatures are reached in seconds. This extremely rapid heating curve limits the total thermal degradation time. Heat-sensitive products maintain their color, flavor, and nutritional profiles much better than they would under prolonged exposure in traditional steam or hot air autoclaves.
