Integrating industrial drying equipment requires high capital expenditure. Operational risks always accompany these significant investments. A wrong equipment choice disrupts entire production schedules. Plant managers often struggle to evaluate vendor data sheets effectively. Distinguishing between flashy marketing claims and verifiable performance metrics is notoriously difficult. Vendors frequently highlight peak power capacities. Actual continuous output often tells a completely different story. You need reliable data to make the right choice for your facility. Misinterpreting a single specification causes massive production bottlenecks. It can also lead to unsafe operating conditions. We provide plant managers and process engineers with an evidence-based framework. You will learn how to evaluate industrial microwave dryer specifications effectively. This guide ensures your chosen system meets strict throughput demands. It helps you verify footprint constraints and compliance requirements accurately. We will help you select the precise equipment you need. You can achieve your production goals without over-engineering your line. By understanding core technical parameters, you protect your product quality. You also guarantee operator safety on the factory floor.
Frequency dictates penetration: 915 MHz offers deeper penetration for bulk goods, while 2450 MHz provides better uniformity for thinner profiles.
Form factor impacts throughput: Continuous operations require tunnel microwave dryers, evaluated heavily on belt speed dynamics and microwave leakage suppression at entry/exit ports.
Dual-functionality requires stringent validation: Systems acting as a microwave sterilizer must prove uniform thermal distribution and reliable data logging to meet compliance standards (e.g., FDA/FSMA).
Assess magnetron power output carefully. You must differentiate between rated generator power and actual delivered microwave power. Rated power often reflects the electrical grid consumption. Delivered power measures the actual heating capability inside the cavity. Industry professionals use a reliable standard rule of thumb. It takes approximately 1.2 kW of microwave energy to evaporate 1 kg of water per hour. This baseline depends heavily on the specific heat capacity of your material. Some materials absorb energy faster than others. You must factor your product's unique properties into this calculation. Overestimating delivered power leads to wet final products. Underestimating it causes severe burning and product waste.
Choosing the right frequency is equally crucial for success. You typically choose between 915 MHz and 2450 MHz for industrial use.
915 MHz: This frequency offers greater penetration depth. It suits thick, dense, or bulk materials perfectly. Energy reaches the core of the product easily. You will see it as the standard for heavy-industrial applications. Lumber, bulk agricultural goods, and heavy ceramics use this frequency.
2450 MHz: This frequency provides high heating uniformity. It works best for thin-layer drying and rapid surface treatments. Low-density materials also benefit immensely from this option. Snack foods, paper webs, and thin textiles require this precision.
Power adjustment granularity matters during live production runs. Look for continuously adjustable power controls in the specifications. Stepless power regulation prevents product scorching effectively. It protects your material when line speed fluctuates unexpectedly. Old systems use basic on/off pulsing mechanisms. Modern units vary the voltage smoothly. They allow operators to fine-tune energy delivery instantly. This precise control maximizes your overall yield.

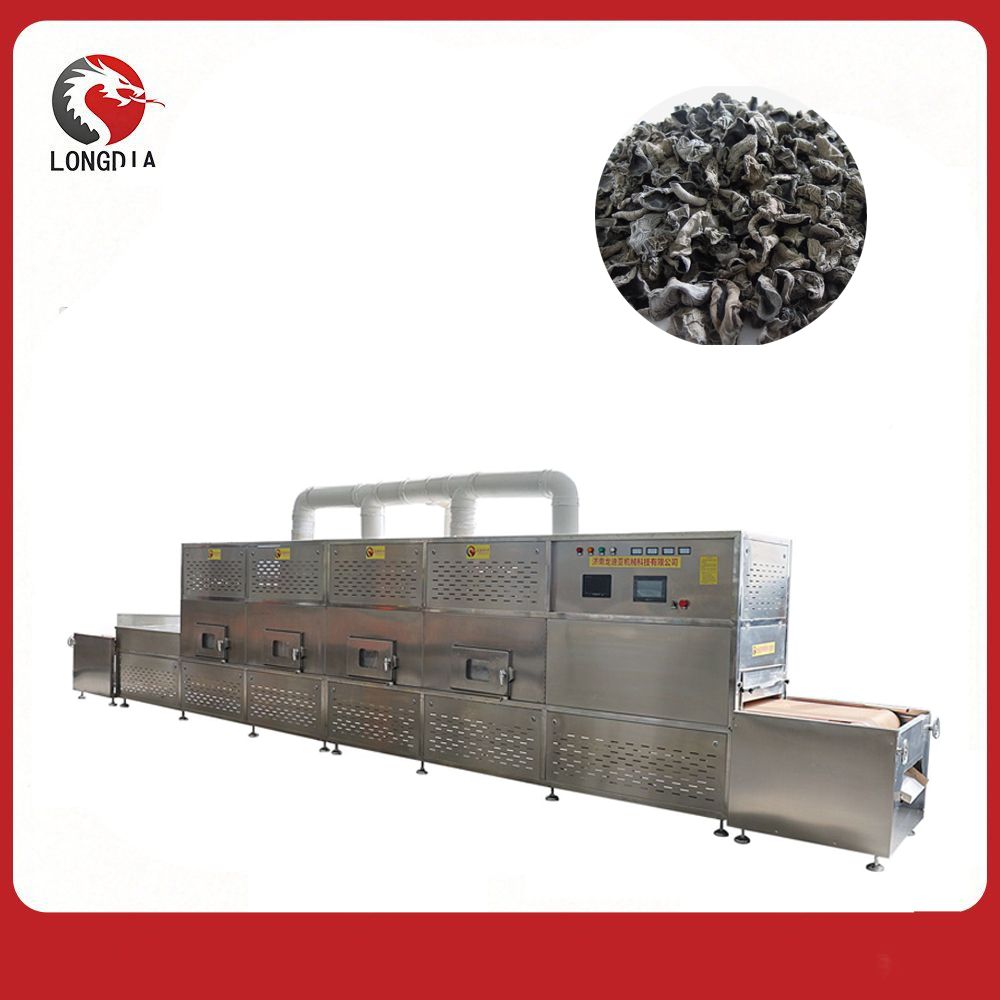

Continuous operations demand specialized equipment configurations. You must evaluate a tunnel microwave dryer based on belt dynamics. Cavity dimensions also play a massive role in performance. Ensure the cavity size matches your upstream and downstream conveyor capacities. Bottlenecks here will restrict your entire production line. A narrow belt forces material to pile up. A belt running too fast reduces necessary exposure time.
Belt material selection requires careful thermal and sanitation review. We strongly recommend evaluating materials like PTFE (Teflon). Food-grade silicone offers another excellent alternative. They offer incredible thermal resistance under intense heat. They also maintain high microwave transparency. This transparency ensures energy heats the food, not the belt. Metal belts reflect microwaves and cause dangerous arcing. You must strictly avoid them in these continuous systems.
Material bed depth constraints dictate your maximum throughput. Establish the maximum allowable material thickness early. Microwaves only penetrate so far before losing their strength. Exceeding this physical limit causes severe uneven drying. The surface might burn while the core remains soaking wet. Compare your target depth against vendor specifications before purchasing. Ask them for specific penetration curves for your product type.
Choke systems prevent hazardous radiation exposure in the facility. A continuous system features open entry and exit points. Material must flow in and out without stopping. Microwave suppression tunnels, called chokes, absorb stray energy at these openings. They use special geometries and water loads to trap radiation. They maintain compliance below occupational safety limits. Standard regulations strictly enforce leakage under 5 mW/cm². Proper choke designs protect your workforce continuously. Never compromise on the length or quality of suppression tunnels.
Thermal uniformity is absolutely critical for pathogen control. Systems acting as a microwave sterilizer must eliminate hot and cold spots. Uneven heating allows dangerous bacteria to survive the process. Engineers evaluate exactly how the equipment distributes energy. You should look for advanced mode stirrers in the design. These rotating metal paddles scatter the microwave field constantly.
Complex waveguide configurations also improve overall field uniformity. Splitters divide the energy from a single magnetron. Multi-feed entry points distribute energy more evenly across the belt. This multi-directional approach bombards the product from all angles.
Log reduction and D-values prove the sterilization system works. Assess the manufacturer’s validation data very carefully. They must provide empirical data for specific target pathogens. Common targets include dangerous strains of Salmonella and E. coli. Reliable validation guarantees your product meets stringent safety standards. Ask for third-party lab results validating their equipment. Do not accept theoretical calculations for food safety compliance.
Maintaining the delicate moisture-temperature balance requires extreme precision. You must retain specific moisture levels in the final product. Dry products lose their texture, flavor, and market value. Simultaneously, you must achieve the necessary core temperature. Pasteurization and sterilization demand strict temperature thresholds. Discuss these precise specification requirements during the vendor evaluation. They should demonstrate how their control loops balance these opposing forces. Advanced systems use infrared temperature sensors and moisture analyzers. They adjust power dynamically to hit both targets perfectly.
Equipment specifications must align physically and electrically with your plant. Cooling system specifications vary widely between different models. You can compare air-cooled and water-cooled magnetrons. Air-cooled units suit lower power applications perfectly. They require smaller footprints and simpler installations. However, ambient factory temperatures can severely limit their effectiveness.
Water-cooled magnetrons are mandatory for high-power industrial operation. They handle continuous usage effectively across multiple shifts. Water transfers heat away from the electronics much faster. You will need dedicated industrial chillers to support them. Ensure your facility can supply the required cooling water flow.
Utility requirements often demand expensive facility upgrades. Document necessary electrical grid changes early in the project. Many large systems require robust 3-phase, 480V power feeds. Standard factory lines might lack this specific capacity. You must also evaluate integrated exhaust systems thoroughly. The drying cavity flashes steam rapidly during intense heating. Ventilation systems must aggressively remove this thick moisture. If steam lingers, it causes arcing and degrades product quality. It also causes rust on stainless steel components over time.
Modular Scalability Evaluation Matrix
System Feature | Fixed Cavity Design | Modular Cavity Design |
|---|---|---|
Capacity Expansion | Requires purchasing an entirely new machine | Allows simple daisy-chaining of extra modules |
Initial Factory Footprint | Strictly defined and inflexible space requirements | Highly flexible, adapts to available floor space |
Downtime for Upgrades | Extensive installation time and line disruption | Minimal integration time during scheduled maintenance |
Look for specifications offering modular scalability for the future. Daisy-chaining cavity sections lets you increase capacity seamlessly. You simply attach another module to the existing line. You avoid replacing the entire unit when demand spikes. This approach adapts to your growing production demands smoothly. It preserves your initial capital investment long-term.
Modern industrial lines rely heavily on smart data integration. PLC and HMI integration must be completely seamless. Ensure the specifications list open-architecture PLC compatibility clearly. Brands like Allen-Bradley or Siemens integrate easily into existing networks. They support robust SCADA systems effortlessly. This connectivity allows centralized control from a main operator room. It also enables remote monitoring for off-site engineers.
Automated fault detection prevents catastrophic equipment failure and fires.
Look for real-time monitoring of magnetron core temperatures.
Verify the system tracks water cooling flow rates continuously.
Require advanced arc detection technology inside the cavity.
Arcs occur when metal or carbonized bits reflect energy. Optical sensors detect this bright arcing flash instantly. They shut down the power supply in mere milliseconds. This rapid response prevents fires and protects the expensive magnetrons.
Regulatory compliance standards are absolutely non-negotiable for manufacturers. Verify the equipment meets localized industrial safety standards strictly. Look for official CE and UL certifications on the electrical panels. OSHA guidelines dictate workplace safety features and ergonomic controls. FCC or CISPR standards govern EMI (electromagnetic interference) emissions. They ensure your dryer does not interfere with surrounding electronics. High-power microwaves can disrupt nearby sensors and communication networks. Proper shielding and certified designs prevent this costly interference entirely.
Evaluating industrial drying equipment demands methodical scrutiny and patience. The best industrial specifications balance raw power with precise control. They also ensure seamless line integration for maximum efficiency. Purchasing based solely on paper spec sheets carries significant operational risk. Real-world material behavior often contradicts theoretical engineering calculations. You should mitigate this risk through practical, hands-on testing. We strongly recommend mandating a pilot-scale lab test first. Use your actual production materials during this crucial evaluation. Observe the moisture uniformity and structural integrity closely. Check the final product quality before finalizing your procurement shortlist. These actionable steps protect your capital investment. They guarantee the performance and safety of your production line.
A: Industrial magnetrons typically last between 5,000 to 8,000 operating hours. Their exact lifespan depends heavily on the quality of the cooling system and operational consistency. Proper water cooling extends their longevity significantly by preventing thermal degradation. Routine maintenance minimizes unexpected downtime and extends operational life.
A: You calculate efficiency by measuring the conversion from wall plug power to delivered microwave energy. Most high-quality industrial systems operate at a 50% to 60% conversion efficiency. The remaining energy dissipates as heat, which robust cooling systems must remove. This metric determines your actual electrical utility requirements.
A: Yes, they can handle multiple products if equipped properly. The HMI must feature programmable recipes to adjust belt speed and power instantly. However, you must consider physical limits. Frequency penetration varies based on material density. A single frequency might not optimally heat vastly different material profiles without adjusting bed depths.
