Microwave Cat Litter Dryer: Why More Manufacturers Are Switching To Microwave Technology

The Drying Pain Points in Cat Litter Production: Why Traditional Methods Are Being Phased Out

Cat litter sits at the heart of the pet economy, with the global market now exceeding $10 billion. From the early loose, non-clumping varieties to today’s diverse landscape of clumping clay, tofu litter, wood litter, crystal silica, and bentonite litter, the manufacturing process has grown increasingly demanding in terms of drying efficiency, finished moisture content, and pellet strength.

Traditional cat litter drying methods — gas-fired hot-air ovens, rotary drum dryers, and steam-conduction heating — suffer from critical bottlenecks:

• Uneven heating: Bentonite pellets dry on the outside while remaining wet inside, creating a hardened shell that traps internal moisture. This leads to post-packaging mold growth and clumping failure.

• High energy consumption: Pre-heating the entire oven environment wastes over 60% of thermal energy through the air→wall→material heat transfer chain.

• Dust contamination: Open or semi-open drying environments allow fine dust to escape, compromising workshop cleanliness and exposing workers to occupational health risks.

• Slow thermal response: Heat sources take minutes to stabilize, and temperature overshoots cause pellet surface cracking and elevated fines, reducing yield rates.

• Sterilization blind spots: Conventional drying temperatures (80–120°C) are insufficient to kill heat-resistant mold spores and pathogenic bacteria, leading to inconsistent hygiene indicators.

As the cat litter industry pivots toward premium, dust-free, and hypoallergenic formulations, these pain points have become unsustainable. Microwave drying technology offers a disruptive solution purpose-built for modern cat litter manufacturers.

Microwave Drying: Not Just "Heating," but "Evaporating Moisture at the Molecular Level"

Microwave drying is fundamentally different from external heat transfer. It operates by driving water molecules directly with electromagnetic energy. At the industrial microwave frequency of 2450 MHz, water molecules inside cat litter pellets — being polar molecules — flip, rub, and collide 2.45 billion times per second in response to the high-frequency electric field, converting electromagnetic energy instantaneously into thermal energy. This triggers vaporization and migration from the inside out.

Unlike traditional drying, which forces heat to permeate from the surface inward, microwave drying makes water molecules essentially "move themselves out" rather than being "pushed out by external heat." This mechanism underpins four irreplaceable advantages in cat litter production.

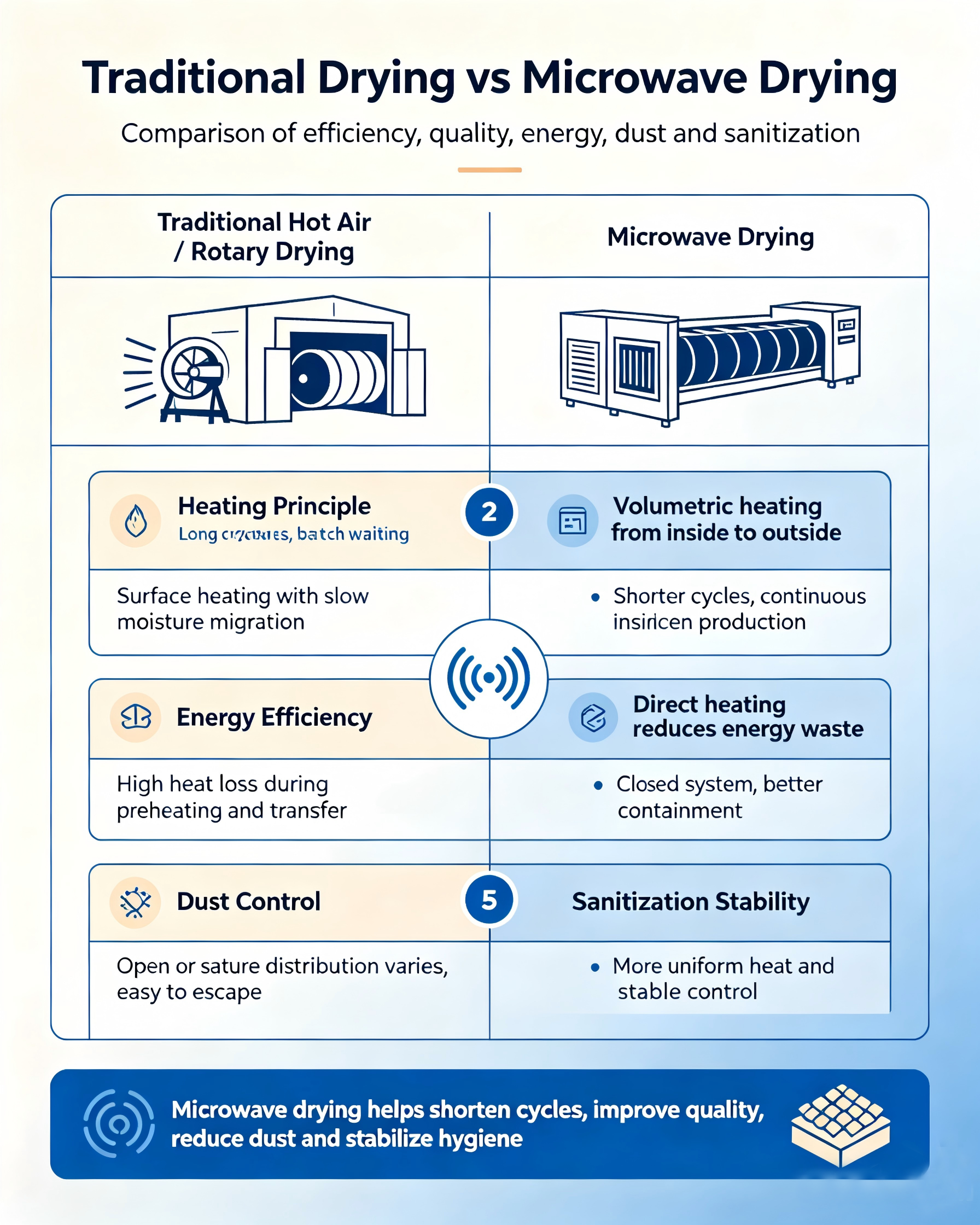

Four Core Advantages of Microwave Drying for Cat Litter

Advantage 1: Clean-Room-Grade Hygiene — Eliminating Dust and Contamination

Traditional hot-air ovens are large, high-temperature environments where the surrounding workspace is perpetually hot and dusty. Workers endure high labor intensity and significant occupational exposure risks. More critically, open-air heat circulation causes fine dust from bentonite and tofu litter to spread throughout the facility, contaminating other production stages and wasting raw material.

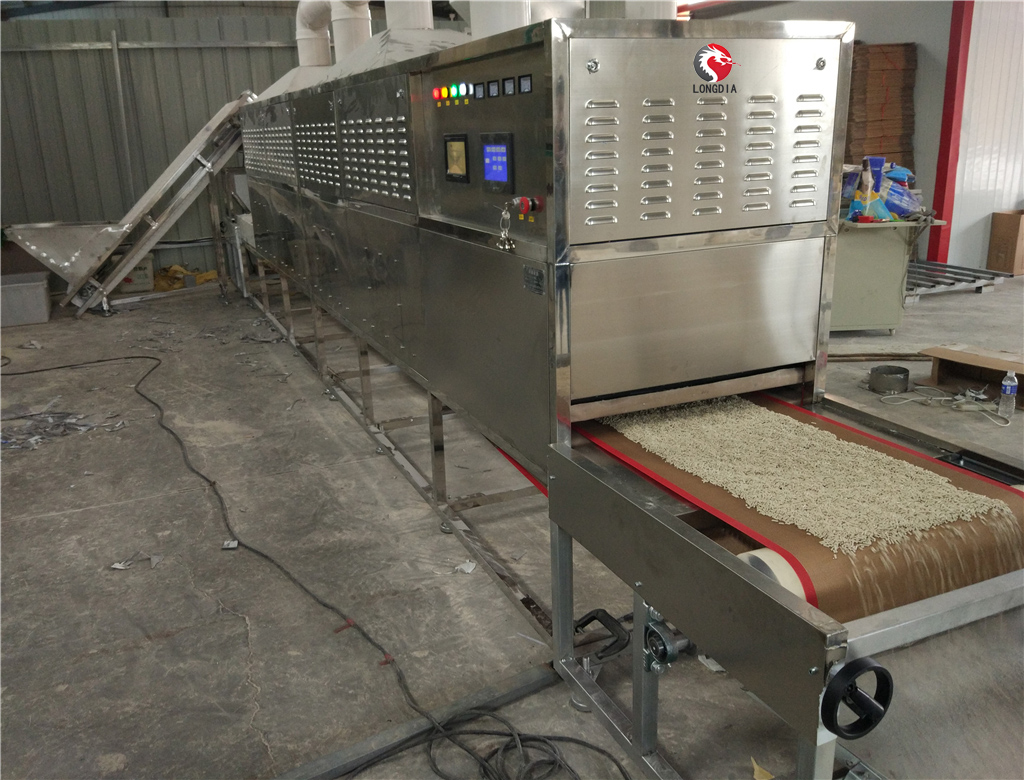

Microwave dryers feature a fully enclosed metal resonant cavity. Cat litter is dried inside a sealed chamber with zero dust escape paths. The equipment footprint is only one-third of an equivalent-capacity hot-air oven, and external surface temperatures remain near ambient. High-temperature work environments are eliminated entirely. Operators simply monitor parameters from a touchscreen, transforming working conditions.

Advantage 2: Penetrative Deep Dehydration — Uniform Inside and Out

Cat litter pellets — especially bentonite and blended varieties — typically range from 0.5 mm to 4 mm in diameter. Core moisture content is often 3%–5% higher than surface moisture. Traditional methods heat from the surface inward, easily creating a "dry shell, wet core" effect: the outer surface hardens into a dense layer that actually blocks further internal moisture release. This results in unstable finished moisture, declining clumping performance during storage, and even mold growth.

Microwaves possess superior penetration capability. Electromagnetic waves pass directly through the pellet surface to reach the core, heating water molecules throughout the pellet simultaneously. Internal and external temperatures rise and moisture is lost in sync. This ensures:

• Moisture uniformity: Finished pellet surface-to-core moisture differential ≤ 0.5%

• Pellet integrity: No surface hardening, no cracking or powdering, with pellet strength improved by 20% or more

• Rapid target achievement: Bentonite litter moisture drops from 18% to ≤10% in minutes rather than the hours required by conventional ovens

Value for manufacturers: Stable, controllable finished moisture content, consistent clumping performance, and significantly reduced customer return rates.

Advantage 3: High Field Strength = High Temperature — Drying and Sterilization in One Step

As a product that pets contact daily, cat litter hygiene directly impacts brand reputation. Conventional drying temperatures (80–120°C) are inadequate to eliminate heat-resistant mold spores and certain pathogenic bacteria. Raw materials — especially bentonite clay and plant fibers — frequently carry microorganisms during storage and transport.

Microwave drying exhibits a non-linear relationship between field strength and temperature rise. In high electromagnetic field intensity zones, material can reach target temperatures almost instantaneously. More importantly, the non-thermal biological effect of microwaves — the disruption of microbial cell membrane electrical potentials by the electromagnetic field — works synergistically with thermal effects to simultaneously achieve during the drying process:

• Mold and bacterial kill rate ≥ 99.9%

• Coliform and Salmonella indicators consistently within spec

• No need for additional irradiation or ozone sterilization processes

Microwave Drying Process Adaptation by Cat Litter Type

Bentonite Cat Litter

• Initial moisture: 15%–20%

• Target moisture: ≤10% (optimal clumping range: 8%–10%)

• Process notes: Medium power density to avoid instantaneous surface overheating and pellet cracking; belt speed matched to pellet diameter to ensure full penetration depth

• Key advantage: Moisture uniformity directly determines clumping strength and dust rate; microwave penetrative drying significantly improves batch consistency

Tofu / Plant Fiber Cat Litter

• Initial moisture: 35%–50% (plant fibers are highly hygroscopic, far exceeding bentonite)

• Target moisture: ≤12%

• Process notes: Segmented drying (low-power moisture release → medium-power dehydration → low-power shape-setting) prevents plant fiber scorching and yellowing; surface temperature controlled < 85°C to preserve natural color and fiber structure

• Key advantage: Low-temperature drying preserves the natural beige/cream color of plant fibers, avoiding Maillard browning; simultaneous sterilization eliminates mold risks carried by raw plant materials

Blended Cat Litter

• Initial moisture: 20%–30% (bentonite + tofu/wood mixture)

• Target moisture: ≤10%

• Process notes: Leverages microwave selective heating characteristics — water molecules absorb microwaves preferentially while bentonite and fiber skeletons absorb relatively little — achieving precise "water removal while material remains" dehydration. Mixed pellet components dry synchronously without layering or segregation

Silica Crystal Cat Litter

• Initial moisture: 30%–40% (adsorbed water within silica pore structures)

• Target moisture: ≤5%

• Process notes: Silica is a weak microwave absorber, but pore water is a strong absorber. Microwaves precisely target and remove adsorbed pore water without overheating silica pellet surfaces, preventing aging. Ideal for silica litter regeneration and re-drying applications

• Key advantage: 3–5× faster than traditional hot-air regeneration ovens, with energy consumption reduced by 40% or more

Wood / Pine Cat Litter

• Initial moisture: 40%–60%

• Target moisture: ≤15%

• Process notes: Wood fibers absorb some microwave energy; lower power density and faster belt speeds are used to prevent lignin softening and adhesion. Simultaneous sterilization kills wood-boring insect eggs and mold carried by raw timber

• Key advantage: Low-temperature drying preserves the natural pine aroma, eliminating the need for chemical fragrance additives

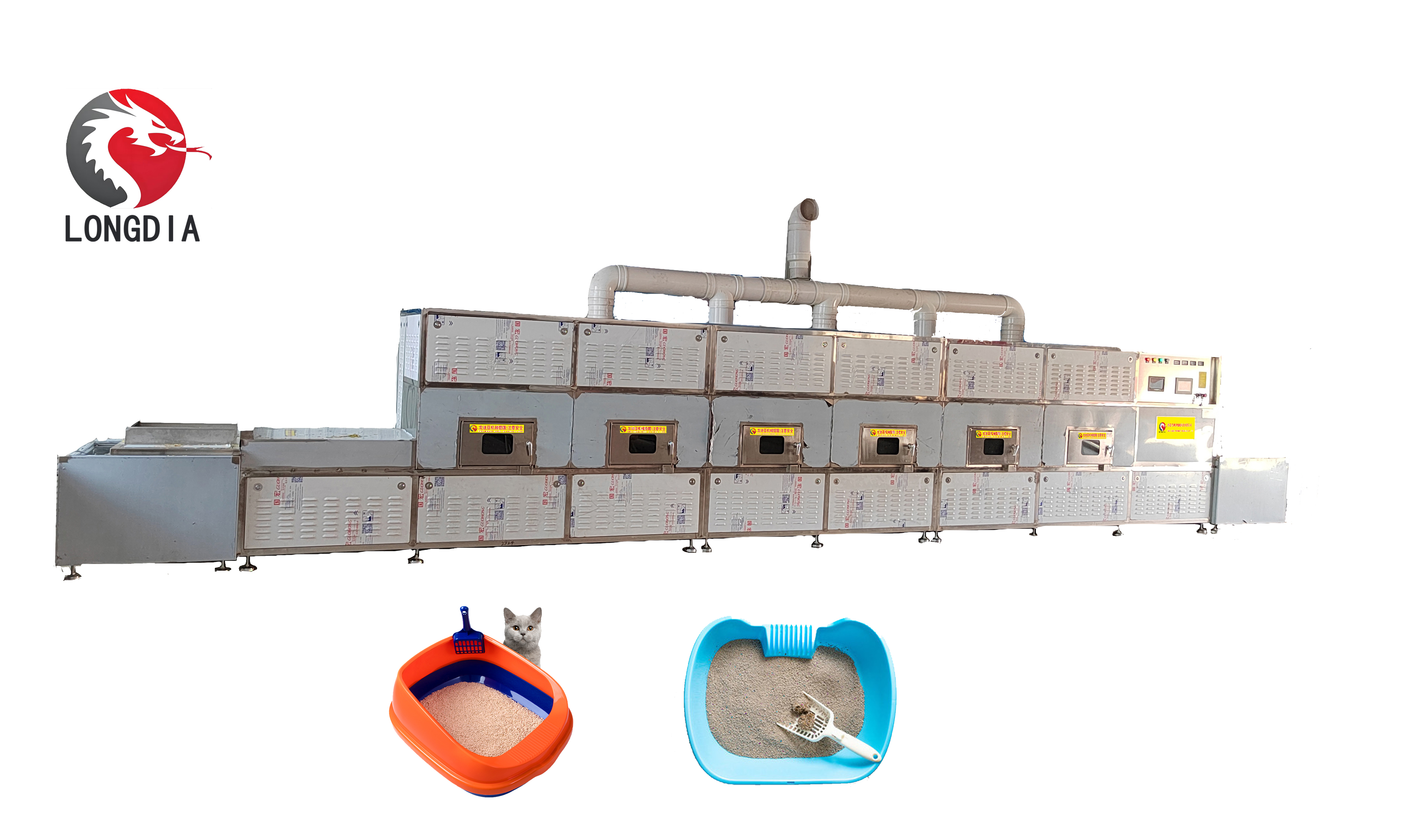

Microwave equipment model reference

Conclusion: From "Experience-Driven" to "Data-Driven" Cat Litter Drying

Competition in the cat litter industry has entered the precision operations phase. A moisture content fluctuation of just 1% can translate to a 5% drop in clumping performance and a doubling of customer complaints. A single missed sterilization step can result in an entire export shipment being rejected and returned.

Microwave drying technology offers cat litter manufacturers a clear upgrade path — from "adjusting heat by feel" to "controlling quality with data".

It is not merely a replacement for drying equipment, but a triple leap in process precision, production efficiency, and hygiene standards. For Chinese cat litter companies targeting overseas markets, or domestic brands seeking to reduce costs and improve quality, microwave drying has shifted from an option to a necessity.
