Submitting a vague Request for Quotation (RFQ) for an industrial microwave dryer often creates serious downstream problems. Buyers frequently receive incomparable bids and uncover hidden integration fees later in the project. You might also receive equipment failing to scale from laboratory trials to full manufacturing production. This scaling gap creates severe operational bottlenecks.
A well-structured RFQ prevents these issues entirely. It forces competing vendors to transparently address dielectric heating realities upfront. They must detail thermal runaway risks, energy conversion efficiencies, and actual operational expenses. We created this comprehensive guide to help you draft a highly effective procurement document. We provide a rigorous technical and commercial framework. You will learn how to filter out unqualified vendors quickly. You will also discover how to secure accurate, finalized pricing before signing any long-term manufacturing contracts.
Precise material data (dielectric properties, input/output moisture) is the foundation of an accurate RFQ.
Clearly state your required microwave drying capacity to prevent vendors from under-sizing the generator.
Outline facility constraints upfront, specifically regarding footprint and acceptable dryer energy consumption.
Demand proof-of-concept (pilot) testing parameters as a mandatory part of the vendor's proposal.
The foundation of your RFQ relies entirely on precise material data. Vendors cannot size equipment accurately without understanding your product. Supplying detailed specifications prevents costly engineering revisions later.
Detail your exact starting moisture percentage. You must also define the strict final moisture tolerance required for quality control. Avoid using broad ranges like "10 to 15 percent". A mere 1% variance in final moisture exponentially impacts required microwave power. Removing the last few drops of bound water demands vastly more energy than evaporating surface free water. Specify if you measure moisture on a wet basis or dry basis. This clarity aligns vendor calculations with your laboratory standards.
Your RFQ must list specific physical properties. Include bulk density, specific heat, and thermal conductivity. Clearly define the material state before processing begins. Tell vendors if they will process a slurry, powder, granular solid, or thick paste. You must define the maximum allowable temperature. This prevents product degradation during rapid heating cycles. Microwave fields sometimes create localized hot spots. Poorly designed applicators cause dangerous thermal runaway. A strict temperature limit forces the vendor to design adequate cooling or power-pulsing mechanisms.
Material Specification Data Checklist
Property Type | Metric Required | Why You Need It |
|---|---|---|
Moisture Profile | Starting % and Ending % | Calculates total water mass for removal. |
Physical State | Bulk Density (kg/m³) | Determines conveyor belt loading limits. |
Thermal Limits | Maximum Temperature (°C) | Prevents burning and thermal runaway. |
Materials react differently to electromagnetic fields. Instruct buyers to include the loss tangent and dielectric constant of their material. Provide these values at standard industrial frequencies. Typical frequencies include 915 MHz or 2450 MHz. Keep in mind these properties often shift as the material heats up. If you lack this data, make it a strict requirement. Require the vendor to measure these properties during the proposal phase. They cannot guarantee performance without knowing how your product absorbs radio frequencies.
Capacity requirements dictate the physical size and power output of the entire system. Vague capacity goals consistently lead to drastically underpowered machines.
Shift the primary focus away from total machine size. Instead, state the required kilograms of water evaporated per hour. This specific metric normalizes bids across different vendors. One vendor might quote a massive cavity utilizing low power. Another might quote a compact cavity utilizing high power. Accurate microwave drying capacity calculations must rely on pure water removal rather than gross product weight.

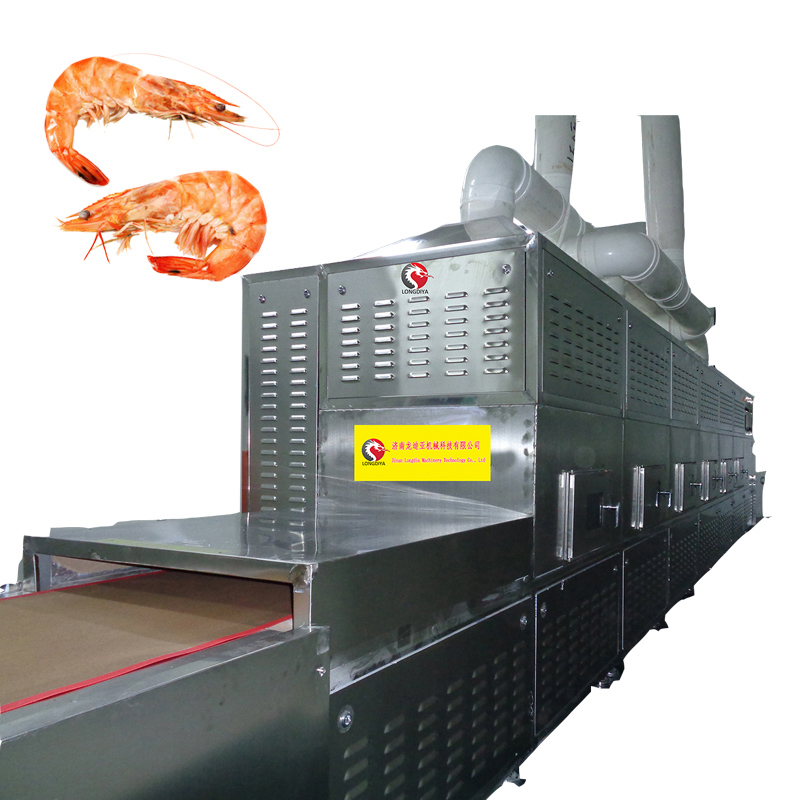

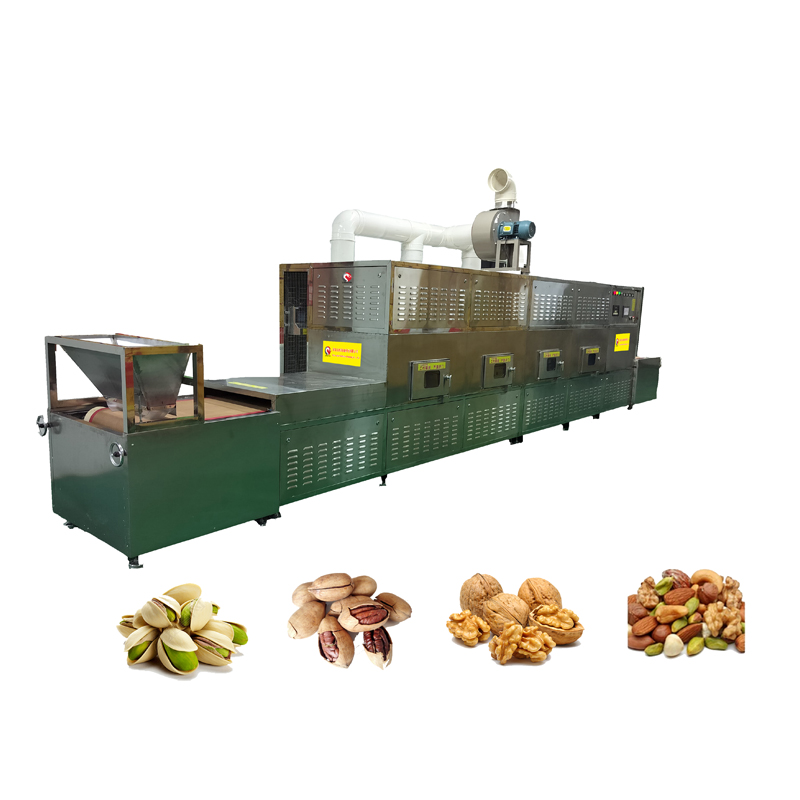

Specify your operational style clearly in the initial document. Tell vendors whether the facility requires a batch oven or a continuous microwave dryer. Batch ovens suit specialized, low-volume runs perfectly. They work exceptionally well for high-value pharmaceutical powders or delicate ceramics. Continuous systems excel at high-volume, inline industrial processing.
For continuous systems, you must define several mechanical parameters:
Required belt speed expressed in meters per minute.
Maximum allowable product bed depth to ensure uniform microwave penetration.
Conveyor loading width based on your upstream extruders or vibration feeders.
Manufacturing lines rarely run at perfectly steady states. Upstream equipment often pushes extra material down the line unexpectedly. Demand vendors outline how the system handles 10-15% production surges. The machine must absorb these sudden volume spikes without compromising the final moisture target. Ask how their control software modulates generator power during sudden load changes. Proper software prevents the system from tripping offline during minor fluctuations.
Your facility infrastructure dictates what equipment you can successfully install. Ignoring spatial or electrical limits causes severe installation delays and unexpected upgrade costs.
State your facility’s available electrical infrastructure clearly. List the incoming voltage, phase, and maximum available amperage. Note any limits on harmonic distortion your grid allows. Ask vendors to quote specific magnetron configurations. You might prefer multiple 100kW units for raw bulk power in heavy industry. Alternatively, you might want smaller, modular 10kW solid-state generators. Solid-state technology offers highly precise frequency control. It also prevents total system shutdowns if a single module fails.
Utility bills heavily impact long-term operational profitability. Instruct vendors to calculate the expected dryer energy consumption. They must express this in terms of kilowatts consumed per kilogram of water evaporated. Require a strict breakdown of grid-to-microwave energy conversion efficiency. Magnetrons typically convert about 60-70% of electrical energy into usable microwaves. You need to know where the remaining energy goes. Ask them to detail heat recovery options if applicable.
Floor space remains extremely valuable in active manufacturing plants. Provide your maximum dimensional allowances (Length x Width x Height) in the RFQ. Require vendors to detail the entire physical footprint. The quote must include generators and water-cooling chillers. It must also account for exhaust fans, vacuum pumps, and main electrical cabinets. Leaving these bulky peripherals out of the RFQ drawing leads to crowded, unsafe production floors.
Industrial environments demand rigorous safety protocols. High-power electromagnetic equipment requires robust shielding, automated safety interlocks, and fail-safe logic.
Modern plants rely heavily on centralized data collection. Require details on how the new system integrates into existing SCADA or PLC networks. Specify common industrial protocols like Allen-Bradley, Siemens, or Modbus. You must specify the need for closed-loop temperature monitoring. Traditional metal thermocouples act as antennas and interfere with microwave fields. Require advanced sensors like infrared (IR) cameras or fiber optic probes. These non-metallic tools measure product temperature safely during active heating.
Safety standards are absolutely non-negotiable. Demand formal certification for acceptable microwave leakage standards. Refer to guidelines from OSHA, the FDA, or local CE equivalents. Typically, environmental leakage must remain below 5 mW/cm² at a distance of 5 centimeters from the machine. Outline strict requirements for internal safety mechanisms. You need rapid arc detection systems to prevent fires. Demand automated fire suppression integration using water or specialized gas. Require multiple, easily accessible emergency shut-off mechanisms around the entire perimeter.
Food and pharmaceutical applications face strict hygiene regulations. Specify the required Ingress Protection (IP) rating for all electrical enclosures. Environments requiring frequent high-pressure washing need IP65 or IP69K ratings. Define the acceptable construction materials clearly. Specify 304 stainless steel for general food processing use. Demand 316L stainless steel for highly corrosive or pharmaceutical environments. Specify continuous, smooth TIG welds to prevent bacterial growth in crevices.
A comprehensive RFQ protects you commercially. It forces vendors to stand behind their engineering claims with binding guarantees.
Never purchase unproven microwave technology based on theoretical math alone. Mandate that the winning bidder must successfully complete a pilot test. They must test your specific raw material before full manufacturing begins. Ask for the precise cost and timeline of this pilot phase. Require them to state exactly how pilot results scale to production guarantees. If the pilot fails to meet moisture targets, outline the exit clauses.
Equipment downtime destroys manufacturing profitability. Require an itemized list of high-wear consumable parts. Microwave systems consume specific components over time through normal operation. Ask for prices on replacement magnetrons, specialized PTFE conveyor belts, and waveguide windows. Request guaranteed lead times for these specific parts. State current replacement costs directly in the quotation to avoid future price gouging.
Clarify exactly who handles the final mechanical setup. Specify that the quote must include Factory Acceptance Testing (FAT). You should inspect the running machine at their facility first. Demand comprehensive Site Acceptance Testing (SAT) after installation at your plant. The SAT should require running continuously for 8 hours without faults. Include on-site operator training in the initial price. Your team must know how to clean, troubleshoot, and operate the system safely daily.
Common RFQ Mistakes to Avoid:
Failing to provide exact starting moisture variations.
Assuming all magnetrons offer the same lifespan.
Overlooking the physical space required for water chillers.
Ignoring local emission and safety compliance certifications.
Sourcing industrial drying equipment represents a high-CapEx partnership. It is never a simple, off-the-shelf transactional purchase. An evidence-based, highly detailed RFQ protects the buyer thoroughly. It prevents you from acquiring over-engineered, unnecessarily expensive systems. It also prevents you from buying under-powered, bottlenecking machines causing daily frustration.
Your next step requires immediate internal collaboration. Assemble a cross-functional team before drafting the final document. Include process engineering, quality assurance, and procurement staff. They must finalize the material data sheet collaboratively. Once finalized, distribute your comprehensive RFQ to shortlisted vendors and demand detailed, line-by-line responses.
A: Usually 2–4 weeks, depending on whether preliminary dielectric testing is required.
A: Generally, ask for a turnkey system, but request itemized pricing for the generator, applicator, and material handling systems to compare vendor costs accurately.
A: Look past the nominal kW rating of the machine and evaluate the guaranteed "plug-to-heat" efficiency percentage and the stated energy cost per ton of processed material.
