Microwave drying, puffing, and sterilization provides an efficient processing solution for mealworms, black soldier fly larvae, silkworm pupae, and other insect products. With fast and uniform heating, it can quickly remove moisture, reduce microorganisms, and shorten drying time while improving production efficiency and product quality.
The microwave system can also provide a certain puffing effect according to different processing requirements. It can be customized for different insect species, moisture levels, final product requirements, and production capacities, making it suitable for insect food, protein powder, animal feed, pet food, and other applications.

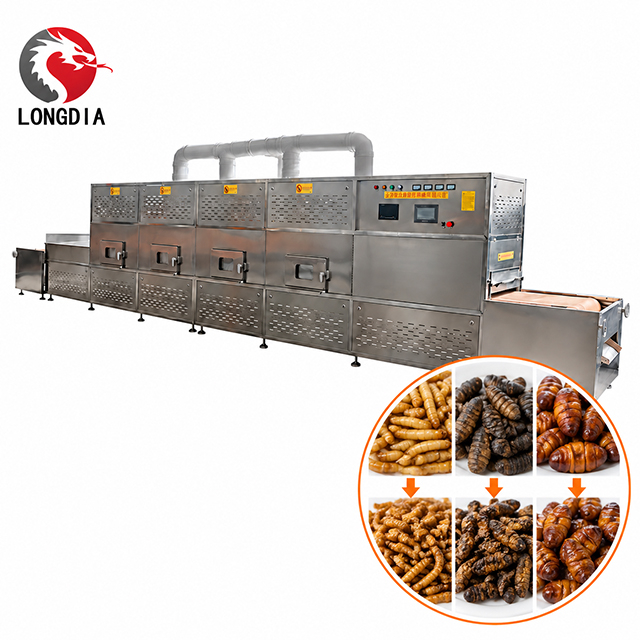

Our industrial continuous microwave dryer and sterilizer provides an efficient drying, puffing, and sterilization solution for mealworms, black soldier fly larvae, silkworm pupae, and other insect products. Microwave energy generates heat directly inside the material, enabling rapid and uniform moisture removal while helping reduce microbial levels, shorten drying time, and improve overall processing efficiency. The microwave process can also create a certain puffing effect to improve the texture and appearance of the dried insects. The system can be customized with different microwave power levels, conveyor speeds, temperature settings, and control functions according to the insect type, initial moisture content, target moisture level, sterilization requirements, and required processing capacity.
Microwave Insect Drying Puffing And Sterilization Machine Configuration | |
Microwave Power | 20kw-800kw (depends on customer's materials) |
Controller | Intelligent PLC Control |
Video Monitoring | Fully automatic PLC touch screen control and LCD imaging display |
Touch screen | Including |
Exhaust Fan | Including |
Conveyor belt Speed | 0～5 m/min(adjustable) |
Conveyor belt width | 600mm |
Conveyor belt material | PTFE mesh conveyor belt(food-grade), mesh size 1*1 mm |
Infrared temperature sensor | Including: Temperature range: 0–500℃ |

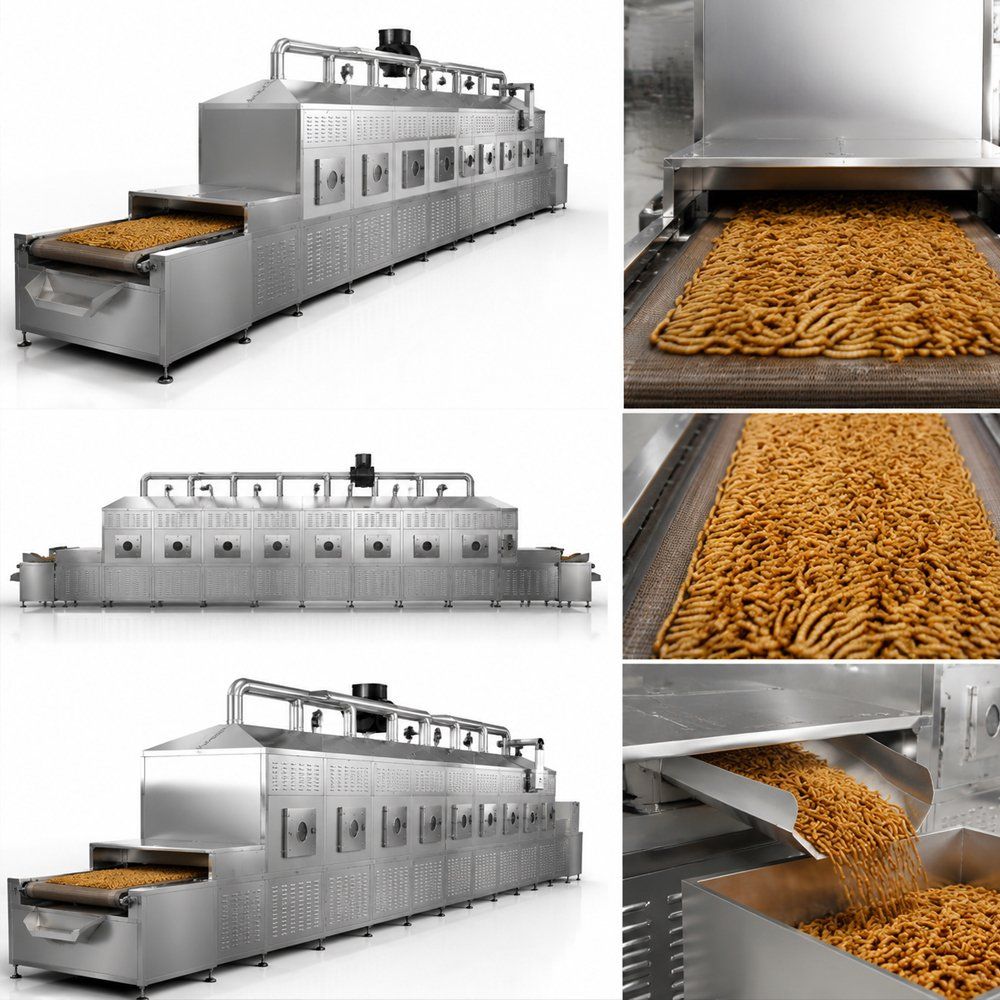

This air-cooled tunnel microwave dryer is designed for continuous industrial processing. Using microwave volumetric heating, it heats materials from the inside, enabling efficient and consistent drying throughout the production process.
The equipment is constructed from 304 stainless steel and uses air-cooled magnetron units for reliable operation. Its PLC control system allows independent adjustment of microwave power and conveyor speed in different sections, making it suitable for stable, standardized, and continuous production in industrial facilities.
Fast and Efficient Drying
Microwave energy directly heats the moisture inside mealworms, black soldier fly larvae, silkworm pupae and other insects, accelerating moisture evaporation and significantly shortening drying time.
Uniform Heating
Microwave volumetric heating allows the material to be heated from the inside and outside simultaneously, helping improve drying uniformity and reduce uneven moisture distribution.
Drying and Sterilization in One Process
During microwave drying, thermal and microwave effects can also help reduce microorganisms, allowing drying and sterilization to be completed in the same processing line.
Good Puffing Effect
Rapid internal moisture evaporation can create a certain puffing effect, helping improve the texture and appearance of dried insect products.
Continuous Industrial Production
The conveyor-type design enables continuous feeding and discharging, making the machine suitable for medium and large-scale insect processing lines.
Adjustable Processing Parameters
Microwave power, conveyor speed, temperature and processing time can be adjusted according to different insect species, moisture contents and final product requirements.
Easy Operation and Automatic Control
The system can be equipped with PLC and touchscreen control for convenient parameter setting, temperature monitoring and continuous production management.
Customizable Production Capacity
Machine size, microwave power, conveyor width and production capacity can be customized for mealworms, black soldier fly larvae, silkworm pupae and other insect processing requirements.
No. | Model | Power | Dehydration Capacity | Sterilization Capacity |
1 | LDY-20PW | 20KW | 20kg/h | 192-240 kg/h |
2 | LDY-40PW | 40KW | 40kg/h | 396-495 kg/h |
3 | LDY-60PW | 60KW | 60kg/h | 600-750 kg/h |
4 | LDY-70PW | 70KW | 70kg/h | 696-870 kg/h |
5 | LDY-80PW | 80KW | 80kg/h | 804-1000 kg/h |
6 | LDY-100PW | 100KW | 100kg/h | 1000-1250 kg/h |
7 | LDY-150PW | 150KW | 150kg/h | 1500-1875 kg/h |
Microwave System
Microwave Generator Over-temperature Protection: A temperature switch on top cuts power automatically when overheating to prevent damage.
Conveying & Transmission System

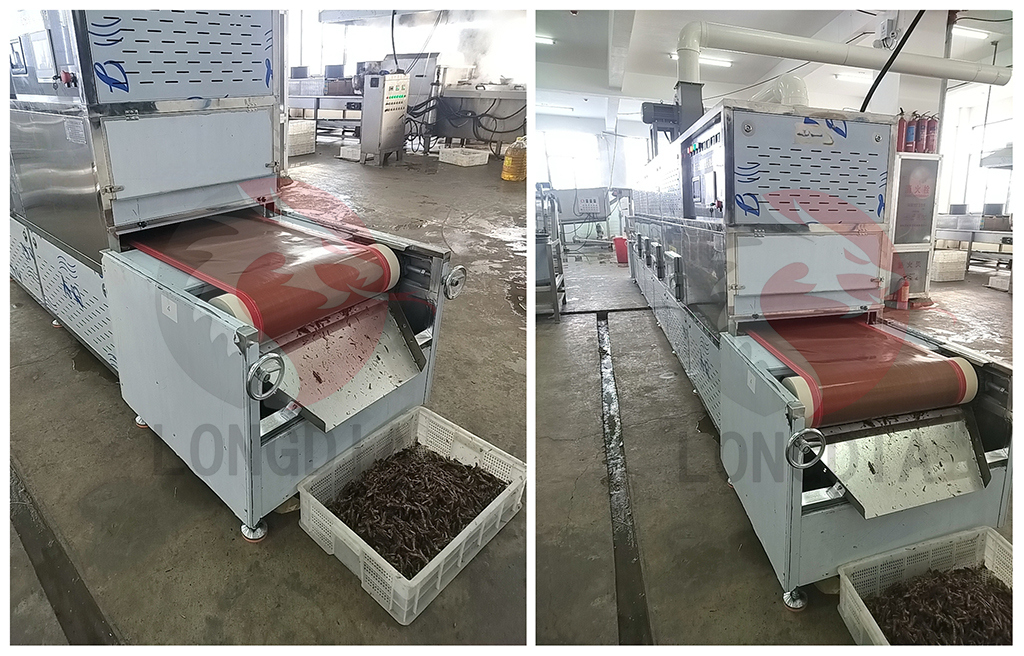

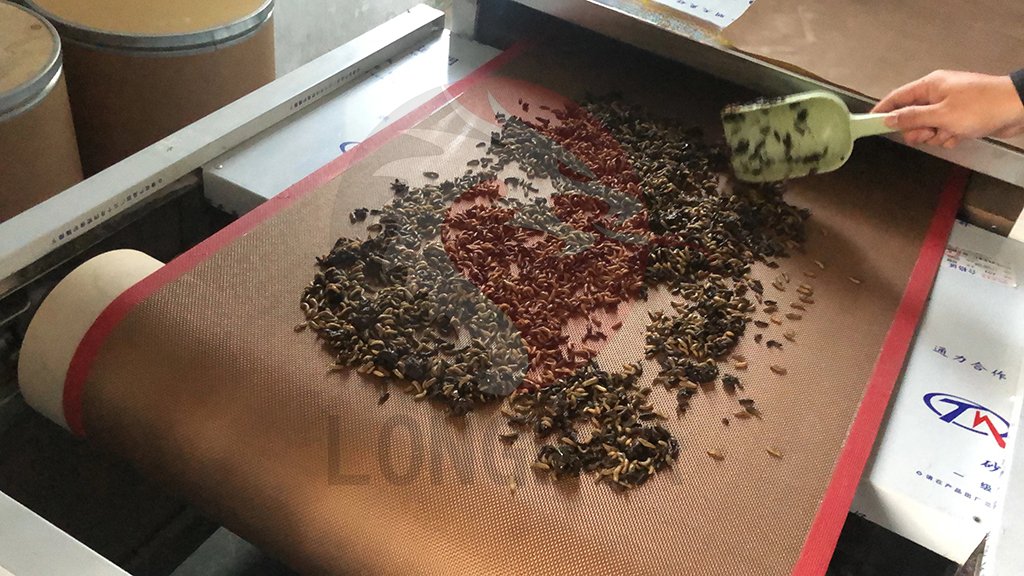

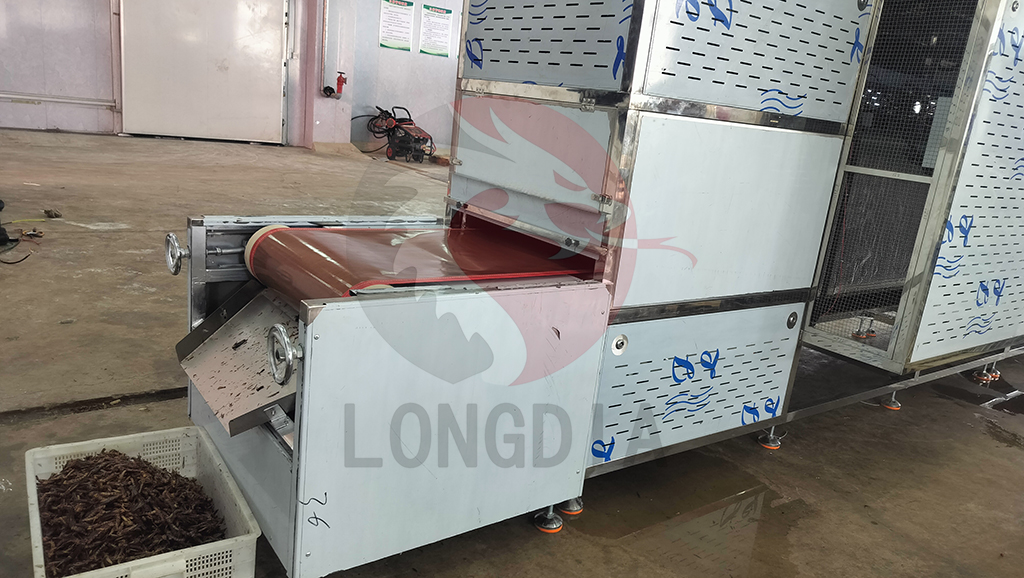

Equipped with a 600 mm PTFE conveyor belt with adjustable speed of 0–5 m/min. Microwave suppressors at the inlet and outlet help prevent microwave leakage.
Moisture Exhaust
Moisture exhaust fans efficiently remove water vapor from the chamber, while a non-contact infrared sensor provides real-time monitoring of material temperature.
Control System and Monitoring System
PLC & touchscreen control with saved drying recipes, adjustable parameters, infrared temperature monitoring, data logging, plus camera and viewing window for real-time material observation.

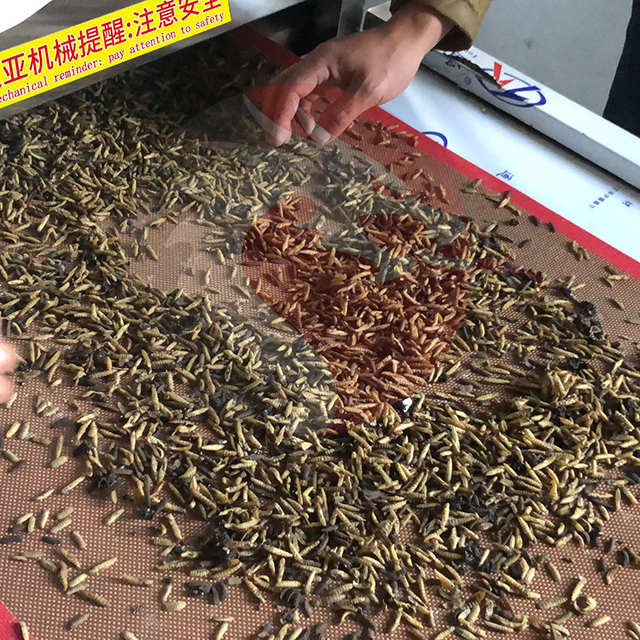

This continuous microwave drying, puffing and sterilization machine is designed for efficient processing of mealworms, black soldier fly larvae, silkworm pupae, crickets and other edible or feed insects. Microwave energy generates heat directly within the insect material, enabling rapid moisture removal and uniform heating while helping reduce microbial levels, shorten drying time and improve processing efficiency. Rapid moisture evaporation can also provide a certain puffing effect according to the insect type and processing parameters.
The continuous conveyor system supports stable feeding and discharge and can be integrated into automated insect processing, animal feed, pet food and insect protein production lines. Microwave power, conveyor speed, processing time and temperature can be adjusted according to different insect species, initial moisture content, target moisture level, sterilization requirements and processing capacity.
Insect Processing Industry (Main Application): Mealworms, black soldier fly larvae, silkworm pupae, crickets and other insects requiring continuous drying, puffing and microbial control.
Black Soldier Fly Processing: Suitable for drying black soldier fly larvae for further processing into insect protein, feed ingredients and other insect-based products.
Mealworm Processing: Continuous microwave drying and sterilization of fresh or pretreated mealworms for dried insect products, protein ingredients and animal feed applications.
Silkworm Pupae Processing: Suitable for moisture reduction, drying and microbial control of silkworm pupae for food, feed and further processing applications.
Animal Feed & Pet Food Industry: Processing insects used as protein-rich ingredients for animal feed, aquaculture feed, poultry feed, pet food and pet treats.
Insect Protein & Powder Production: Drying insects before grinding, milling or further processing into insect protein powder and other value-added products.
Insect Processing & R&D: Suitable for insect farms, feed manufacturers, food processing companies, universities, research institutes and R&D centers for microwave drying tests, process optimization, parameter development and pilot-scale production.
Whole Machine Warranty: 12-month full machine warranty, effective upon successful machine commissioning.
Key Components Warranty: Microwave magnetrons carry a 10-month warranty. Free replacement spare parts are supplied for non-human-caused quality defects within the warranty period.
Lifelong Online Technical Support: Permanent online technical consultation covering drying processes, operation guidance and fault troubleshooting.
Remote Guidance: Video call support is available for equipment commissioning, routine maintenance and fault diagnosis.
On-site Service: Our engineers can be dispatched for on-site installation, commissioning or maintenance upon request. Buyer is responsible for engineers’ travel and lodging costs.
Spare Parts Supply: After warranty expiration, genuine spare parts can be supplied continuously at discounted prices to maintain stable machine operation.
The complete machine adopts export-grade packaging: non-fumigated solid wooden frame combined with waterproof plastic film.
The machine surface is wrapped in waterproof and dustproof film to guard against moisture and dust during ocean transportation.
Main unit, spare parts, toolbox and manuals are separately fastened inside the wooden frame to avoid collision and shaking in transit.
Small accessories are packed individually in cartons and secured, with packing lists attached.
This packaging is suitable for container sea freight, ideal for shipments to Argentina, Albania and other overseas countries, and meets FOB delivery requirements.
Parameters and prices differ greatly for various materials. Kindly send us details of your material, initial moisture, target moisture and hourly throughput, and we will prepare the optimal quotation.
