Microwave drying provides an efficient solution for Lithium Iron Phosphate (LFP) battery materials. With fast and uniform heating, it can effectively remove moisture, shorten drying time, and improve processing efficiency. The system can also be customized for different battery materials and production requirements.

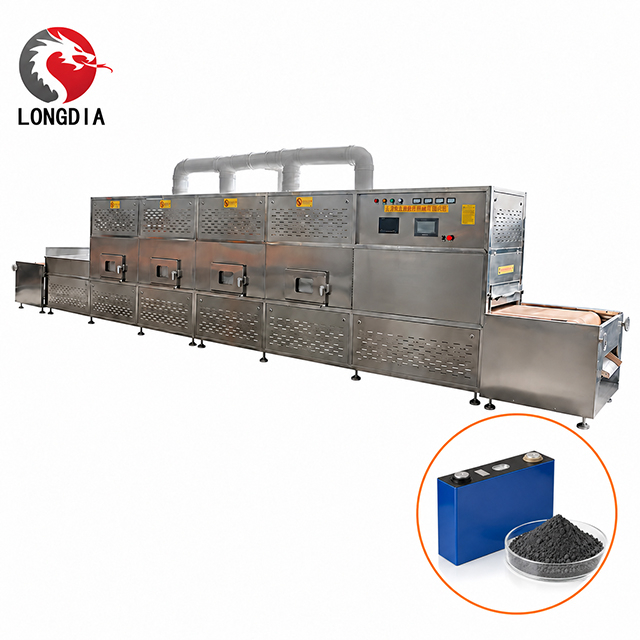

Our industrial continuous microwave dryer provides an efficient drying solution for battery materials, including Lithium Iron Phosphate (LFP), ternary cathode materials, anode materials and other battery powders. Microwave energy generates heat directly within the material, enabling rapid and uniform moisture removal while shortening drying time and improving processing efficiency. The system can be customized with different microwave power levels, conveyor speeds and control functions according to the material properties, moisture requirements and target processing capacity.
Lithium Battery Material Microwave Drying Machine Configuration | |
Microwave Power | 20kw-800kw (depends on customer's materials) |
Controller | Intelligent PLC Control |
Video Monitoring | Fully automatic PLC touch screen control and LCD imaging display |
Touch screen | Including |
Exhaust Fan | Including |
Conveyor belt Speed | 0～5 m/min(adjustable) |
Conveyor belt width | 600mm |
Conveyor belt material | PTFE mesh conveyor belt(food-grade), mesh size 1*1 mm |
Infrared temperature sensor | Including: Temperature range: 0–500℃ |

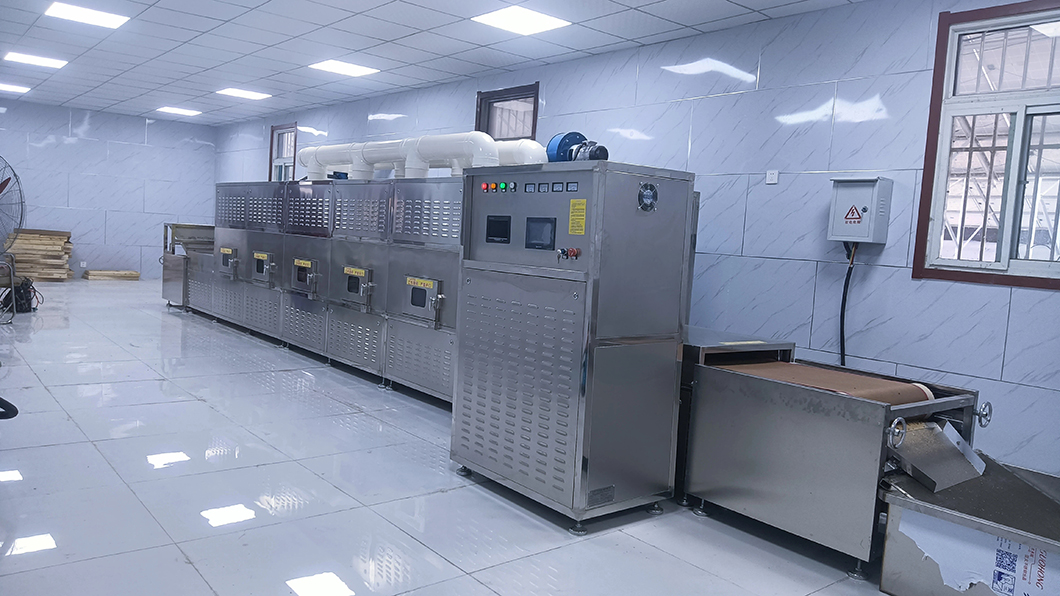

This air-cooled tunnel microwave dryer is designed for continuous industrial processing. Using microwave volumetric heating, it heats materials from the inside, enabling efficient and consistent drying throughout the production process.
The equipment is constructed from 304 stainless steel and uses air-cooled magnetron units for reliable operation. Its PLC control system allows independent adjustment of microwave power and conveyor speed in different sections, making it suitable for stable, standardized, and continuous production in industrial facilities.
Rapid Drying – Microwave energy directly interacts with the material, enabling fast moisture removal and significantly shortening the drying process.
Uniform Heating – Volumetric microwave heating helps reduce temperature differences and achieve more consistent drying throughout the material.
Continuous Processing – The tunnel-type design enables continuous feeding and discharge, making it suitable for large-scale industrial production.
High Processing Efficiency – Continuous operation combined with rapid microwave heating can improve overall production efficiency and throughput.
Precise Process Control – Microwave power, conveyor speed, heating time, and different heating sections can be independently adjusted according to process requirements.
Reduced Thermal Exposure – Shorter drying times can reduce prolonged exposure to high temperatures, which is beneficial for temperature-sensitive battery materials.
Flexible for Different Battery Materials – The system can be adapted for Lithium Iron Phosphate (LFP), ternary cathode materials, anode materials, and other battery powders or granules.
Adjustable Moisture Removal – Drying parameters can be optimized according to the initial moisture content and required final moisture level of different materials.
Easy Integration into Production Lines – The continuous conveyor structure can be customized to integrate with upstream and downstream equipment for automated production.
Customizable Industrial Design – Microwave power, conveyor width and length, feeding system, cooling system, control functions, and processing capacity can be customized according to specific production requirements.
No. | Model | Power | Dehydration Capacity | Sterilization Capacity |
1 | LDY-20PW | 20KW | 20kg/h | 192-240 kg/h |
2 | LDY-40PW | 40KW | 40kg/h | 396-495 kg/h |
3 | LDY-60PW | 60KW | 60kg/h | 600-750 kg/h |
4 | LDY-70PW | 70KW | 70kg/h | 696-870 kg/h |
5 | LDY-80PW | 80KW | 80kg/h | 804-1000 kg/h |
6 | LDY-100PW | 100KW | 100kg/h | 1000-1250 kg/h |
7 | LDY-150PW | 150KW | 150kg/h | 1500-1875 kg/h |

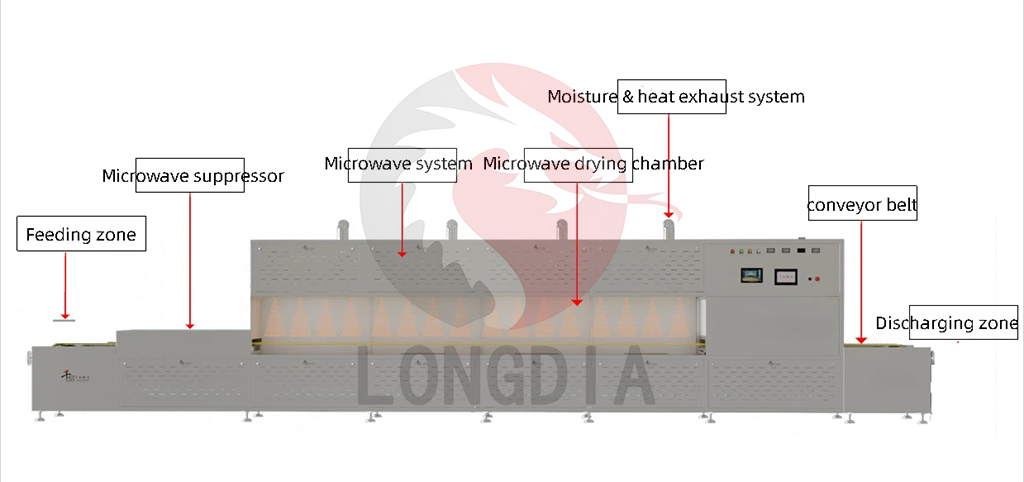

Microwave System
Microwave Generator Over-temperature Protection: A temperature switch on top cuts power automatically when overheating to prevent damage.

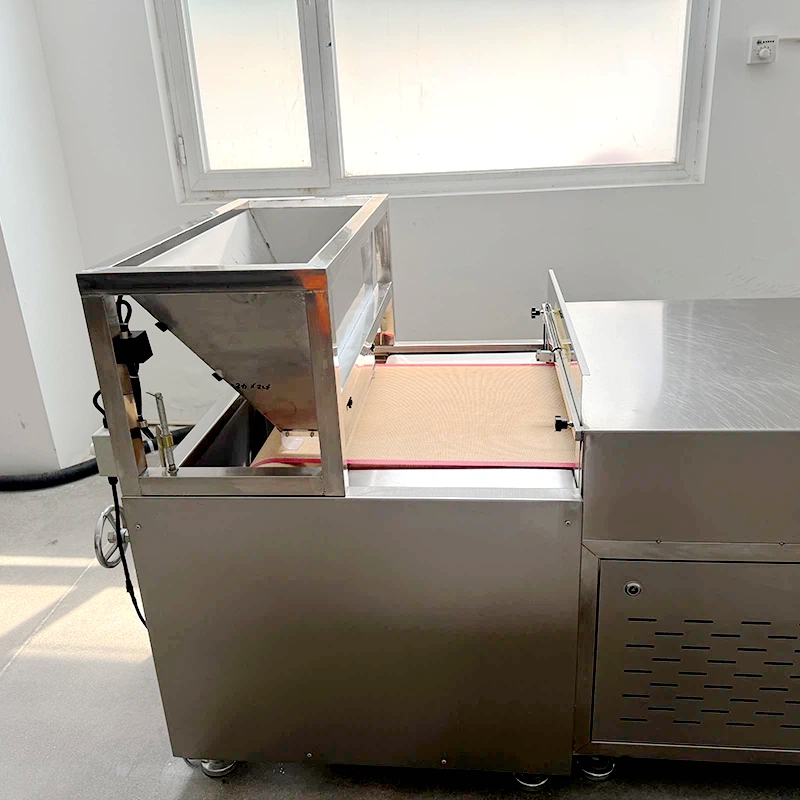

Conveying & Transmission System

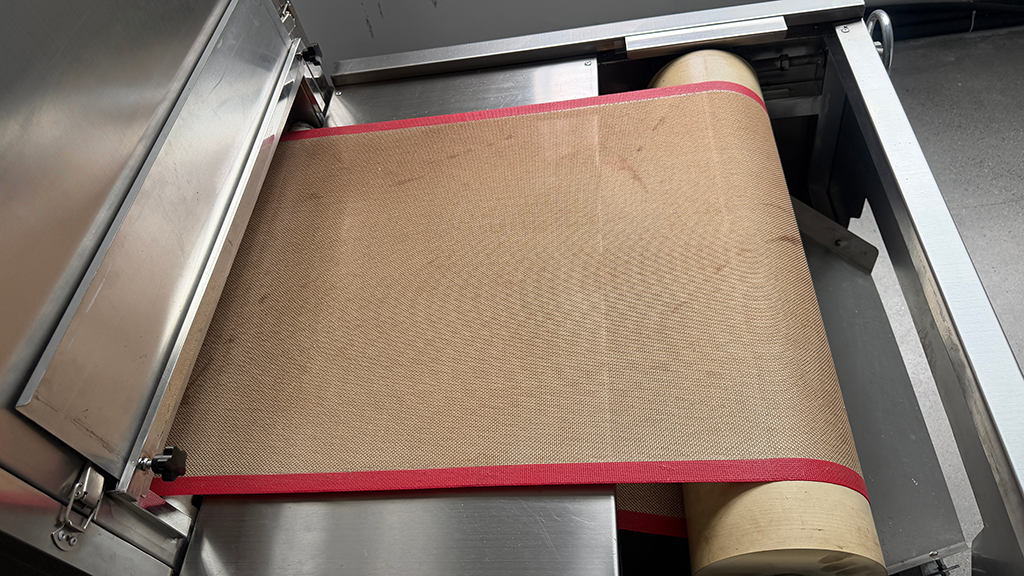

Equipped with a 600 mm PTFE conveyor belt with adjustable speed of 0–5 m/min. Microwave suppressors at the inlet and outlet help prevent microwave leakage.
Moisture Exhaust
Moisture exhaust fans efficiently remove water vapor from the chamber, while a non-contact infrared sensor provides real-time monitoring of material temperature.

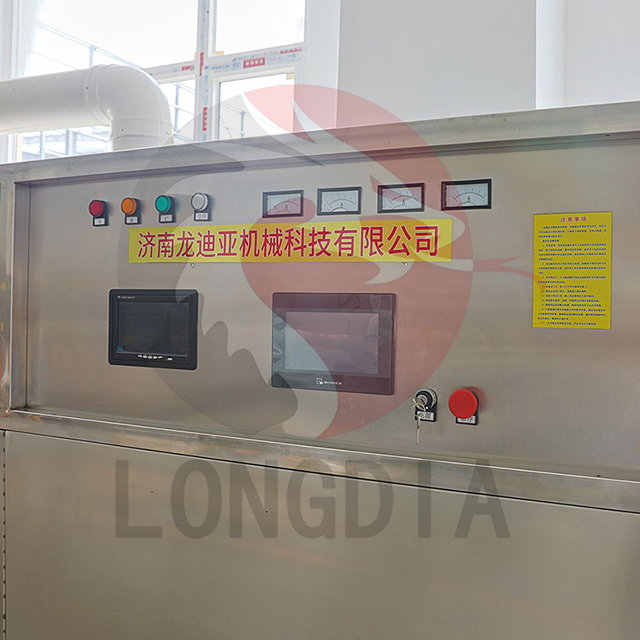

Control System and Monitoring System

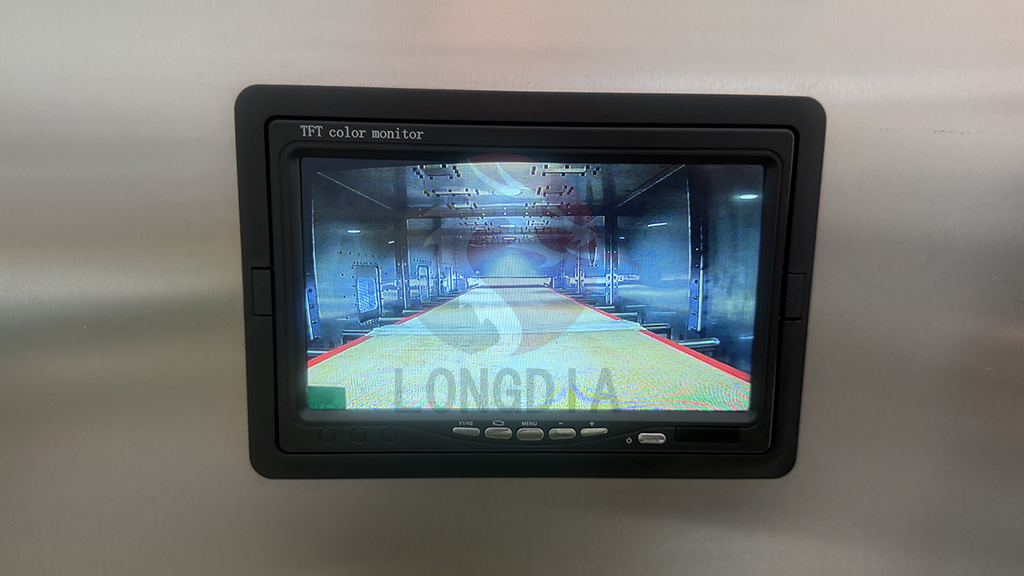

PLC & touchscreen control with saved drying recipes, adjustable parameters, infrared temperature monitoring, data logging, plus camera and viewing window for real-time material observation.
This continuous microwave dryer is designed for efficient and continuous drying of Lithium Iron Phosphate (LFP), ternary cathode materials, anode materials and other battery powders or granules. Microwave energy generates heat directly within the material, enabling rapid moisture removal and uniform drying while reducing processing time. The continuous conveyor system supports stable feeding and discharge and can be integrated into automated production lines. Microwave power, conveyor speed, drying time and heating sections can be adjusted according to different material properties, initial moisture content, target moisture level and processing capacity.

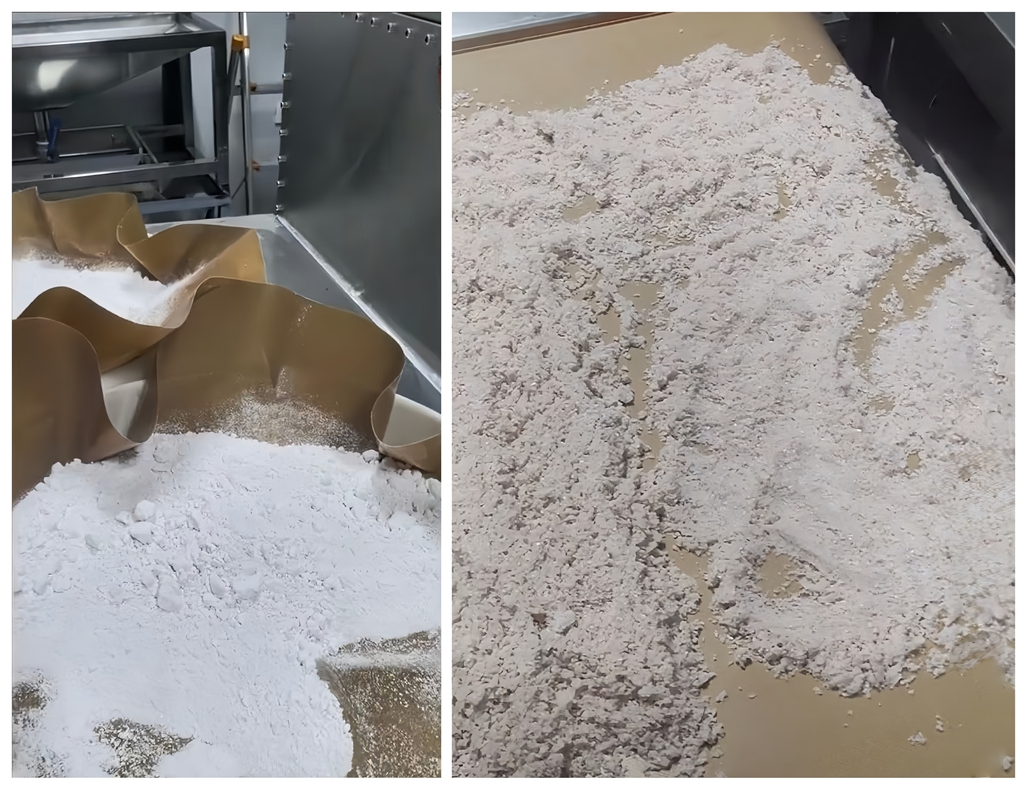

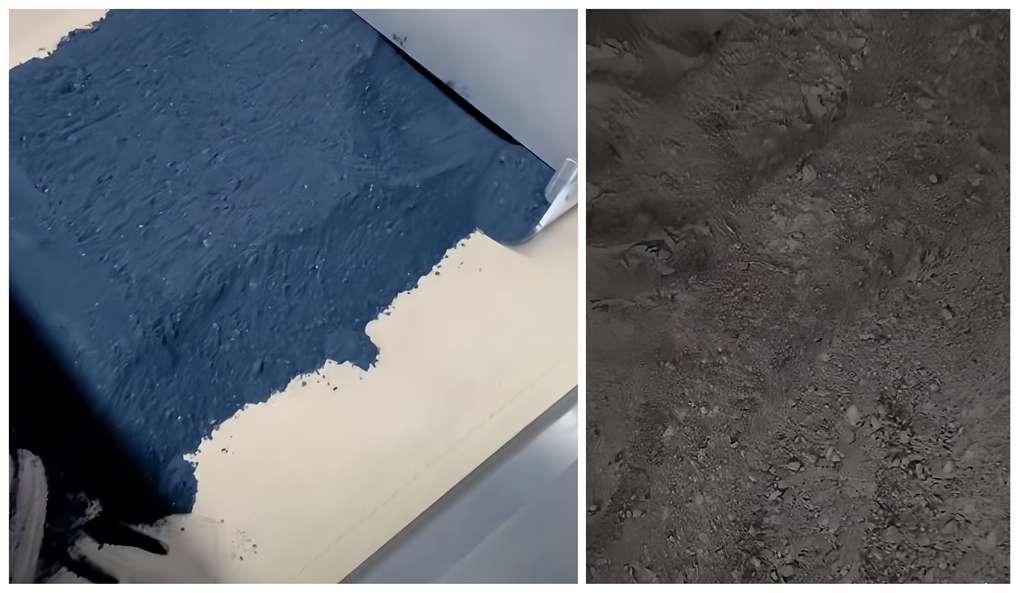

Lithium Battery Material Industry (Main Application): Lithium Iron Phosphate (LFP), ternary cathode materials, anode materials and other lithium battery powders or granules requiring continuous and controlled drying.
Cathode Material Industry: LFP, NCM/NCA ternary materials, cathode precursors and other cathode materials requiring efficient moisture removal and uniform heating.
Anode Material Industry: Graphite-based anode materials and other suitable anode powders requiring controlled drying and continuous processing.
Battery Raw Material Processing: Battery material powders, granules, intermediates and other moisture-containing materials used in battery material production.
New Energy Materials Industry: Functional powders, energy-storage materials and other new-energy materials suitable for microwave drying.
Pilot Production & R&D: Suitable for battery material manufacturers, universities, research institutes and R&D centers for drying tests, process optimization, parameter development and pilot-scale production.
Whole Machine Warranty: 12-month full machine warranty, effective upon successful machine commissioning.
Key Components Warranty: Microwave magnetrons carry a 10-month warranty. Free replacement spare parts are supplied for non-human-caused quality defects within the warranty period.
Lifelong Online Technical Support: Permanent online technical consultation covering drying processes, operation guidance and fault troubleshooting.
Remote Guidance: Video call support is available for equipment commissioning, routine maintenance and fault diagnosis.
On-site Service: Our engineers can be dispatched for on-site installation, commissioning or maintenance upon request. Buyer is responsible for engineers’ travel and lodging costs.
Spare Parts Supply: After warranty expiration, genuine spare parts can be supplied continuously at discounted prices to maintain stable machine operation.
The complete machine adopts export-grade packaging: non-fumigated solid wooden frame combined with waterproof plastic film.
The machine surface is wrapped in waterproof and dustproof film to guard against moisture and dust during ocean transportation.
Main unit, spare parts, toolbox and manuals are separately fastened inside the wooden frame to avoid collision and shaking in transit.
Small accessories are packed individually in cartons and secured, with packing lists attached.
This packaging is suitable for container sea freight, ideal for shipments to Argentina, Albania and other overseas countries, and meets FOB delivery requirements.
Parameters and prices differ greatly for various materials. Kindly send us details of your material, initial moisture, target moisture and hourly throughput, and we will prepare the optimal quotation.
