Microwave drying and sterilization provides an efficient solution for seasonings and spices. With fast and uniform heating, it can effectively remove moisture and reduce microorganisms while shortening processing time and improving production efficiency. The system can also be customized for different seasonings, spice powders, moisture levels, and production requirements.
Our industrial continuous microwave dryer and sterilizer provides an efficient drying and sterilization solution for seasonings and spices, including chili powder, pepper, cumin, spice blends, seasoning powders and other food ingredients. Microwave energy generates heat directly within the material, enabling rapid and uniform moisture removal while helping reduce microbial levels, shorten processing time and improve production efficiency. The system can be customized with different microwave power levels, conveyor speeds, temperature settings and control functions according to the material properties, initial moisture content, sterilization requirements and target processing capacity.
Microwave Seasoning Spice Drying and Sterilization Machine Configuration | |
Microwave Power | 20kw-800kw (depends on customer's materials) |
Controller | Intelligent PLC Control |
Video Monitoring | Fully automatic PLC touch screen control and LCD imaging display |
Touch screen | Including |
Exhaust Fan | Including |
Conveyor belt Speed | 0～5 m/min(adjustable) |
Conveyor belt width | 600mm |
Conveyor belt material | PTFE mesh conveyor belt(food-grade), mesh size 1*1 mm |
Infrared temperature sensor | Including: Temperature range: 0–500℃ |

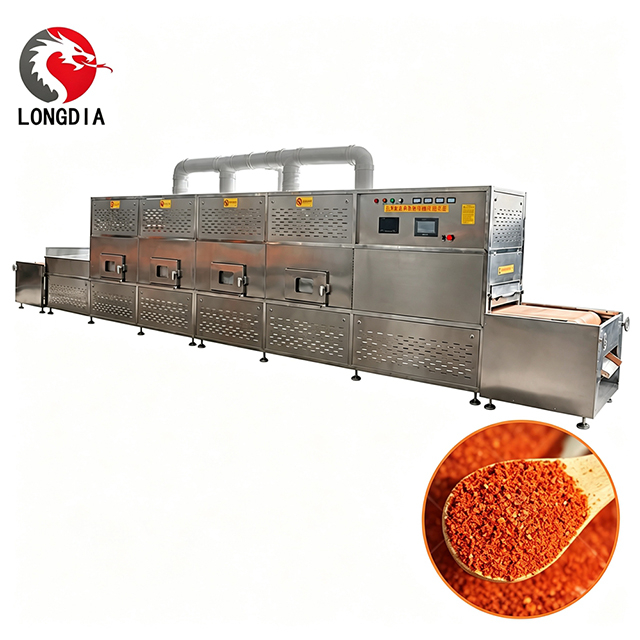

This air-cooled tunnel microwave dryer is designed for continuous industrial processing. Using microwave volumetric heating, it heats materials from the inside, enabling efficient and consistent drying throughout the production process.
The equipment is constructed from 304 stainless steel and uses air-cooled magnetron units for reliable operation. Its PLC control system allows independent adjustment of microwave power and conveyor speed in different sections, making it suitable for stable, standardized, and continuous production in industrial facilities.
Fast Drying and Sterilization
Microwave energy heats the seasoning directly, allowing moisture removal and microbial reduction to take place quickly and significantly shortening processing time.
Uniform Heating
Microwave energy penetrates into the material and provides volumetric heating, helping reduce uneven drying and improve product consistency.
Drying and Sterilization in One Process
Moisture reduction and microbial control can be achieved in the same continuous process, simplifying the production line and improving processing efficiency.
Better Product Quality
Shorter processing times help reduce prolonged heat exposure, which is beneficial for maintaining the color, aroma and overall quality of spices and seasonings.
Continuous Industrial Production
The conveyor-type design enables continuous feeding and discharging, making the system suitable for industrial-scale seasoning and spice processing.
Adjustable Processing Parameters
Microwave power, conveyor speed, processing time and temperature can be adjusted according to different seasoning materials and production requirements.
Easy Operation and Process Control
The system can be equipped with PLC and touchscreen control for convenient parameter setting, operation monitoring and recipe management.
Customizable for Different Products
The equipment can be customized according to the type of seasoning, initial moisture content, target moisture level, sterilization requirements and required production capacity.
No. | Model | Power | Dehydration Capacity | Sterilization Capacity |
1 | LDY-20PW | 20KW | 20kg/h | 192-240 kg/h |
2 | LDY-40PW | 40KW | 40kg/h | 396-495 kg/h |
3 | LDY-60PW | 60KW | 60kg/h | 600-750 kg/h |
4 | LDY-70PW | 70KW | 70kg/h | 696-870 kg/h |
5 | LDY-80PW | 80KW | 80kg/h | 804-1000 kg/h |
6 | LDY-100PW | 100KW | 100kg/h | 1000-1250 kg/h |
7 | LDY-150PW | 150KW | 150kg/h | 1500-1875 kg/h |
Microwave System
Microwave Generator Over-temperature Protection: A temperature switch on top cuts power automatically when overheating to prevent damage.
Conveying & Transmission System
Equipped with a 600 mm PTFE conveyor belt with adjustable speed of 0–5 m/min. Microwave suppressors at the inlet and outlet help prevent microwave leakage.
Moisture Exhaust
Moisture exhaust fans efficiently remove water vapor from the chamber, while a non-contact infrared sensor provides real-time monitoring of material temperature.
Control System and Monitoring System
PLC & touchscreen control with saved drying recipes, adjustable parameters, infrared temperature monitoring, data logging, plus camera and viewing window for real-time material observation.
This continuous microwave drying and sterilization machine is designed for efficient and continuous drying and microbial control of seasoning powders, spices, chili powder, pepper, cumin, spice blends, herbs and other food ingredients. Microwave energy generates heat directly within the material, enabling rapid moisture removal and uniform heating while helping reduce microbial levels and shorten processing time. The continuous conveyor system supports stable feeding and discharge and can be integrated into automated seasoning and food processing lines. Microwave power, conveyor speed, processing time and temperature can be adjusted according to different material properties, initial moisture content, target moisture level, sterilization requirements and processing capacity.
Seasoning Industry (Main Application): Seasoning powders, compound seasonings, spice blends, soup powders and other powdered or granular seasonings requiring continuous drying and microbial control.
Spice Processing Industry: Chili powder, black pepper, white pepper, cumin, paprika, turmeric, cinnamon and other spices requiring moisture reduction and sterilization treatment.
Herbs & Plant-Based Ingredients: Dried herbs, herb powders, botanical ingredients and other suitable plant-based materials requiring controlled drying and microbial reduction.
Food Ingredient Industry: Food powders, flavoring ingredients, dehydrated ingredients and other moisture-containing food materials used in food processing and seasoning production.
Powder & Granule Processing: Suitable food-grade powders, granules and blended materials requiring uniform heating, moisture control and continuous processing.
Food Processing & R&D: Suitable for seasoning manufacturers, food processing companies, universities, research institutes and R&D centers for drying and sterilization tests, process optimization, parameter development and pilot-scale production.
Whole Machine Warranty: 12-month full machine warranty, effective upon successful machine commissioning.
Key Components Warranty: Microwave magnetrons carry a 10-month warranty. Free replacement spare parts are supplied for non-human-caused quality defects within the warranty period.
Lifelong Online Technical Support: Permanent online technical consultation covering drying processes, operation guidance and fault troubleshooting.
Remote Guidance: Video call support is available for equipment commissioning, routine maintenance and fault diagnosis.
On-site Service: Our engineers can be dispatched for on-site installation, commissioning or maintenance upon request. Buyer is responsible for engineers’ travel and lodging costs.
Spare Parts Supply: After warranty expiration, genuine spare parts can be supplied continuously at discounted prices to maintain stable machine operation.
The complete machine adopts export-grade packaging: non-fumigated solid wooden frame combined with waterproof plastic film.
The machine surface is wrapped in waterproof and dustproof film to guard against moisture and dust during ocean transportation.
Main unit, spare parts, toolbox and manuals are separately fastened inside the wooden frame to avoid collision and shaking in transit.
Small accessories are packed individually in cartons and secured, with packing lists attached.
This packaging is suitable for container sea freight, ideal for shipments to Argentina, Albania and other overseas countries, and meets FOB delivery requirements.
Parameters and prices differ greatly for various materials. Kindly send us details of your material, initial moisture, target moisture and hourly throughput, and we will prepare the optimal quotation.
