Microwave thawing and defrosting provides an efficient processing solution for pork and other frozen meat products. With fast and uniform microwave heating, frozen pork and meat can be rapidly tempered or defrosted from the inside out, significantly shortening thawing time while reducing uneven heating and excessive surface warming.
The microwave system can be adjusted according to different meat types, block sizes, initial temperatures, target temperatures, and production capacities. It is also suitable for beef, lamb, poultry, seafood, and other frozen food materials, making it an ideal solution for meat processing plants, frozen food production, food manufacturing, and other industrial applications.

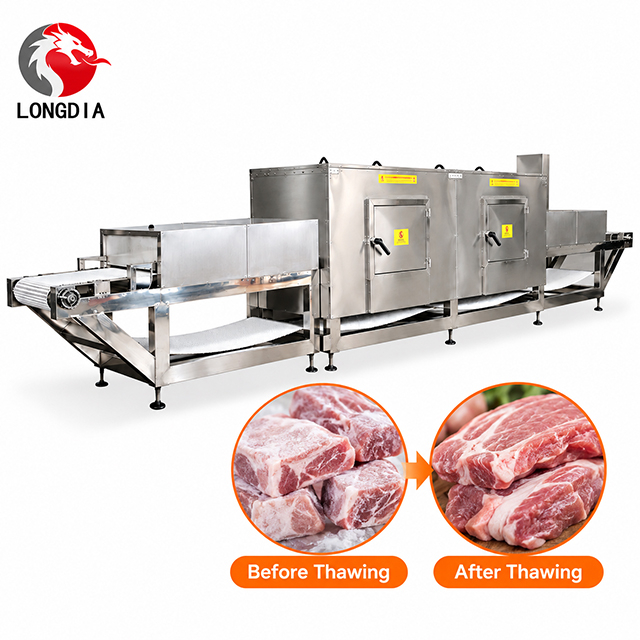

Our industrial microwave thawing and defrosting machine provides an efficient solution for frozen pork and other frozen meat products. Microwave energy generates heat directly inside the frozen material, enabling rapid and uniform tempering or defrosting while significantly shortening processing time and reducing excessive surface warming.
The microwave process allows frozen pork and meat blocks to reach the required processing temperature more evenly, helping improve temperature consistency and production efficiency for subsequent cutting, slicing, grinding, marinating, or other processing steps. The system can be customized with different microwave power levels, conveyor speeds, temperature settings, and control functions according to the meat type, block size, initial temperature, target temperature, required processing capacity, and production requirements. It can also be used for beef, lamb, poultry, seafood, and other frozen food products.
Microwave Pork & Meat Thawing and Defrosting Machine Configuration | |
Microwave Frequency | 915±25MHZ |
Conveyor belt Speed | 0.1～5 m/min(adjustable) |
Conveyor belt width | 600mm |
Conveyor belt material | Chain Plate |
Inlet & outlet Height | 150mm |
Controller | PLC control +touch screen (English, if you need other language, please let us know in advance) |
Total installed power | 35KW |
Water chiller | Including |

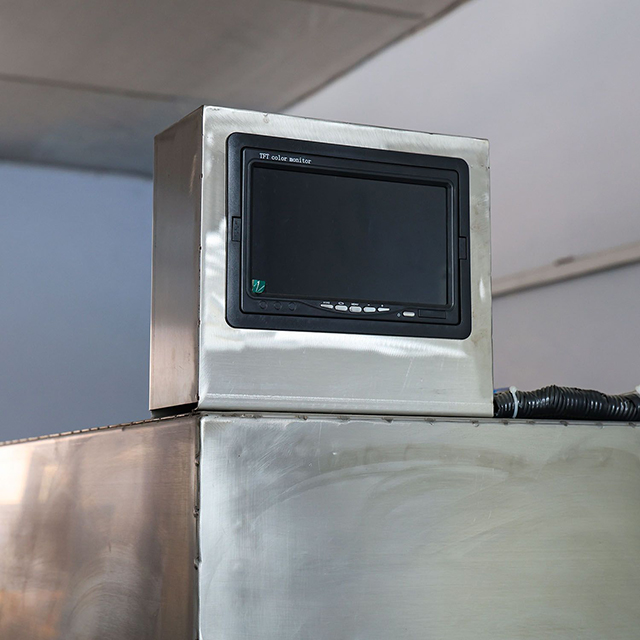

High-definition monitoring camera | Including |
Voltage | 380V three phases 50hz (other voltage, please let us know) |
Fast and Efficient Thawing
Microwave energy penetrates frozen pork and meat blocks and generates heat directly inside the material, significantly shortening thawing and tempering time compared with conventional methods.
Uniform Temperature Distribution
Microwave volumetric heating helps reduce temperature differences between the surface and center of frozen meat, providing more uniform and controlled thawing.
Reduced Drip Loss
Rapid and controlled tempering helps reduce excessive thawing and drip loss, supporting better product yield and quality during meat processing.
Better Product Quality
Controlled microwave thawing helps avoid excessive surface heating while the center remains frozen, helping maintain the texture, appearance, and overall quality of pork and other meat products.
Continuous Industrial Processing
The conveyor-type design enables continuous feeding and discharging, making the system suitable for medium and large-scale meat processing plants and frozen food production lines.
Easy for Further Processing
Frozen meat can be tempered to a suitable target temperature for subsequent cutting, slicing, grinding, marinating, mixing, or other processing operations.
Adjustable & Automatic Control
Microwave power, conveyor speed, processing time, and temperature can be adjusted according to different meat types and production requirements. PLC and touchscreen control are available for convenient operation and monitoring.
Customizable for Different Meat Products
Machine size, microwave power, conveyor width, and production capacity can be customized for pork, beef, lamb, poultry, and other frozen meat products according to block size, initial temperature, target temperature, and required throughput.

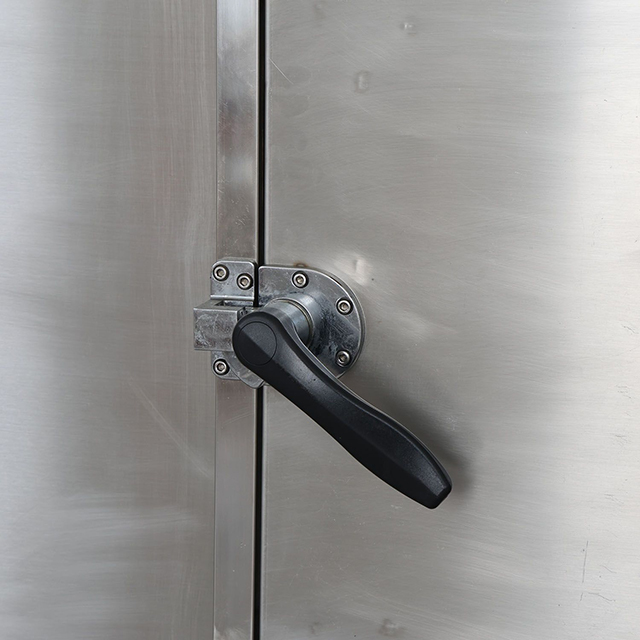

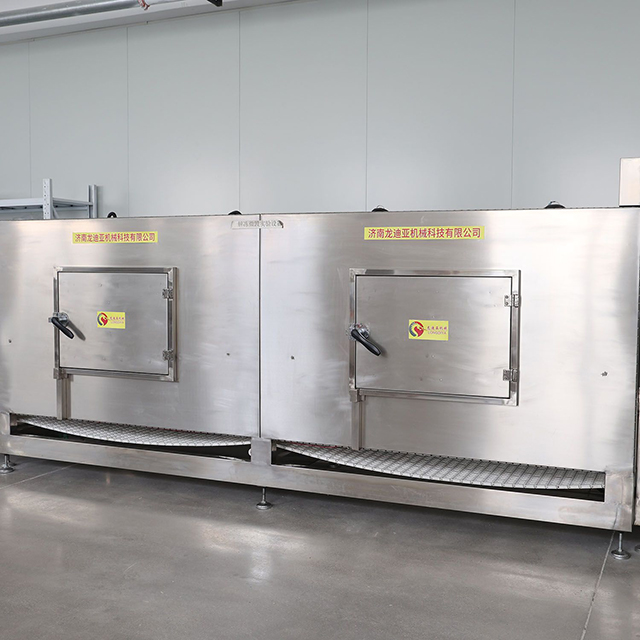

The 3600 × 1000 × 800 mm microwave thawing chamber is constructed with 2 mm thick SUS304 brushed stainless steel, featuring a durable and food-grade design. Large inspection and cleaning doors with viewing windows allow easy observation, cleaning, and maintenance. The doors are equipped with microwave choke structures and safety interlocks to minimize microwave leakage and automatically cut off microwave power when opened, ensuring safe operation.
The microwave suppressor is made of 3 mm thick high-purity aluminum with 1.0 mm suppression plates. It has a length of 2000 mm and an opening height of 150 mm. Inductive comb-type suppression plates combined with microwave-absorbing materials effectively minimize microwave leakage, maintaining leakage levels below 5 mW/cm² when measured 5 cm from the equipment.

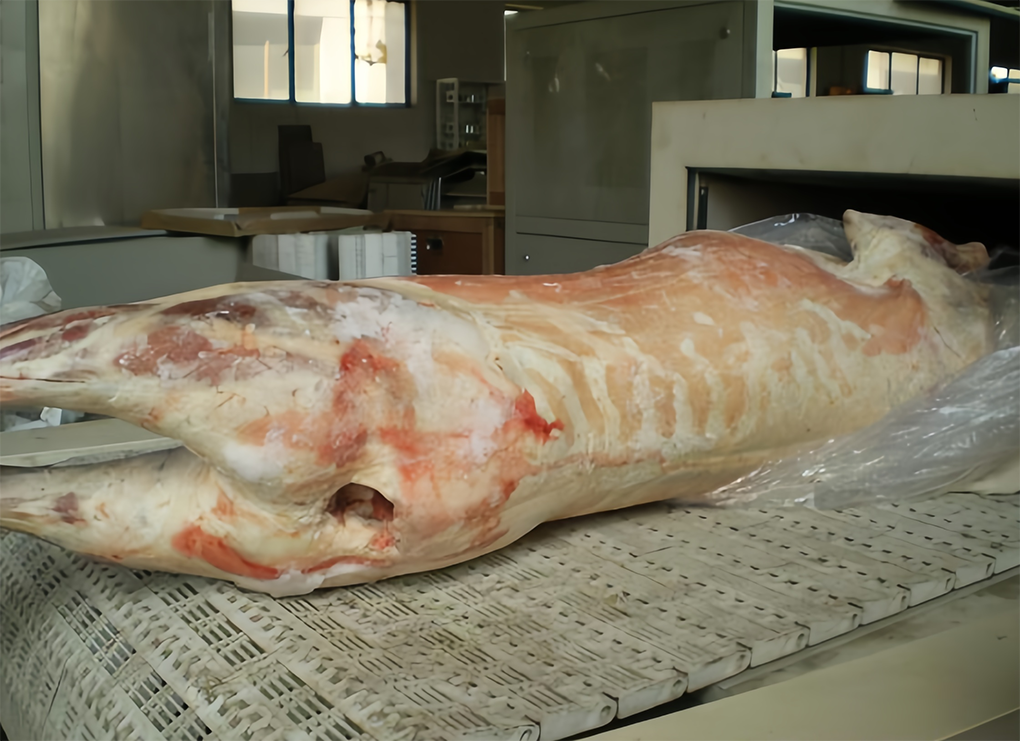

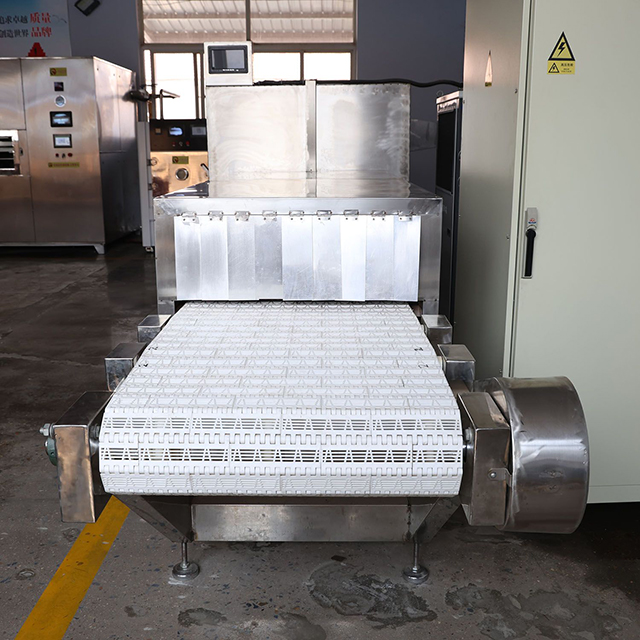

The inlet and outlet conveyor frames are constructed with welded stainless steel tubes and removable stainless steel covers for easy inspection and maintenance. The system is equipped with securely installed drive components, stainless steel support rollers, and a microwave-compatible plastic chain plate conveyor belt, ensuring smooth, stable, and reliable continuous material conveying.
This industrial microwave thawing and defrosting machine is designed primarily for the rapid and uniform tempering and defrosting of frozen pork and other meat products. Microwave energy penetrates frozen meat blocks and generates heat directly inside the material, significantly shortening thawing time while helping reduce temperature differences between the surface and the center.
The continuous conveyor system supports stable feeding and discharge and can be integrated into meat processing, frozen food, prepared food, and other industrial production lines. Microwave power, conveyor speed, processing time, and temperature can be adjusted according to the meat type, block size, initial temperature, target temperature, and required processing capacity. The system is suitable for pork, beef, lamb, poultry, and other frozen meat products.
Pork Processing Industry (Main Application): Rapid tempering and defrosting of frozen pork blocks, pork cuts, and other frozen pork products before cutting, slicing, grinding, marinating, or further processing.
Meat Processing Industry: Suitable for pork, beef, lamb, poultry, and other frozen meat products requiring fast and controlled thawing or tempering.
Frozen Meat Processing: Efficiently prepares frozen meat blocks for subsequent portioning, cutting, deboning, slicing, grinding, and other processing operations.
Sausage & Processed Meat Production: Thawing and tempering frozen pork, beef, and other raw meat materials before grinding, mixing, seasoning, stuffing, and further production.
Prepared Food Production: Suitable for meat ingredients used in ready-to-cook foods, prepared meals, meat fillings, and other processed food products.
Large-Scale Meat Production Lines: Continuous microwave thawing can be integrated with cutting, grinding, mixing, marinating, and other processing equipment to improve production efficiency and reduce thawing waiting time.
Poultry Processing: Can be adapted for frozen chicken, duck, turkey, and other poultry products requiring controlled tempering or defrosting before further processing.
Meat Processing & R&D: Suitable for slaughterhouses, meat processors, frozen food manufacturers, food factories, universities, research institutes, and R&D centers for microwave thawing tests, process optimization, parameter development, and pilot-scale production.
Whole Machine Warranty: 12-month full machine warranty, effective upon successful machine commissioning.
Key Components Warranty: Microwave magnetrons carry a 10-month warranty. Free replacement spare parts are supplied for non-human-caused quality defects within the warranty period.
Lifelong Online Technical Support: Permanent online technical consultation covering drying processes, operation guidance and fault troubleshooting.
Remote Guidance: Video call support is available for equipment commissioning, routine maintenance and fault diagnosis.
On-site Service: Our engineers can be dispatched for on-site installation, commissioning or maintenance upon request. Buyer is responsible for engineers’ travel and lodging costs.
Spare Parts Supply: After warranty expiration, genuine spare parts can be supplied continuously at discounted prices to maintain stable machine operation.
The complete machine adopts export-grade packaging: non-fumigated solid wooden frame combined with waterproof plastic film.
The machine surface is wrapped in waterproof and dustproof film to guard against moisture and dust during ocean transportation.
Main unit, spare parts, toolbox and manuals are separately fastened inside the wooden frame to avoid collision and shaking in transit.
Small accessories are packed individually in cartons and secured, with packing lists attached.
This packaging is suitable for container sea freight, ideal for shipments to Argentina, Albania and other overseas countries, and meets FOB delivery requirements.
Thawing requirements and machine configurations vary depending on different products and production capacities. Kindly send us the following information:
What product do you need to thaw or defrost?
How many hours does your production line operate per day?
How many kilograms of product do you need to thaw per day?
Based on your requirements, we will recommend a suitable microwave thawing solution and provide you with a detailed quotation.
